IBM-1620 Computer by Owen Phairis
Picture History of my restoration of a 1959 IBM-1620 Computer

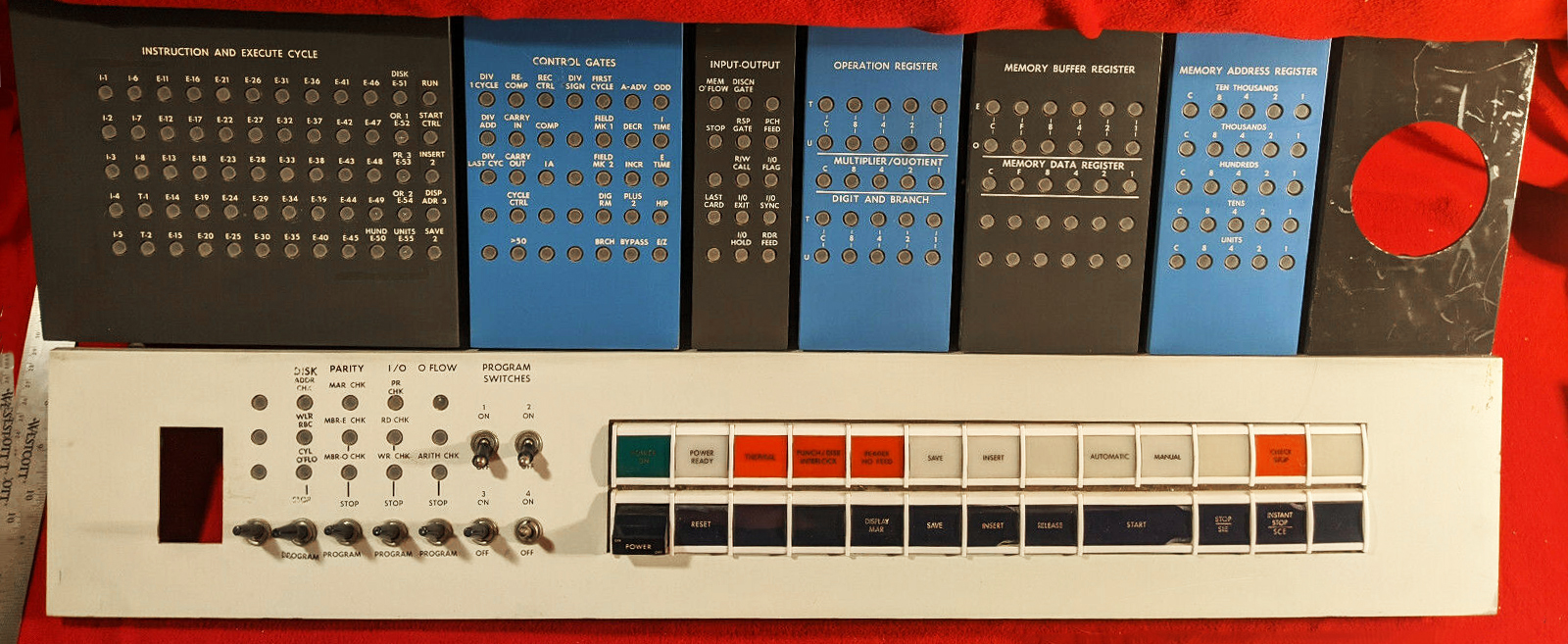

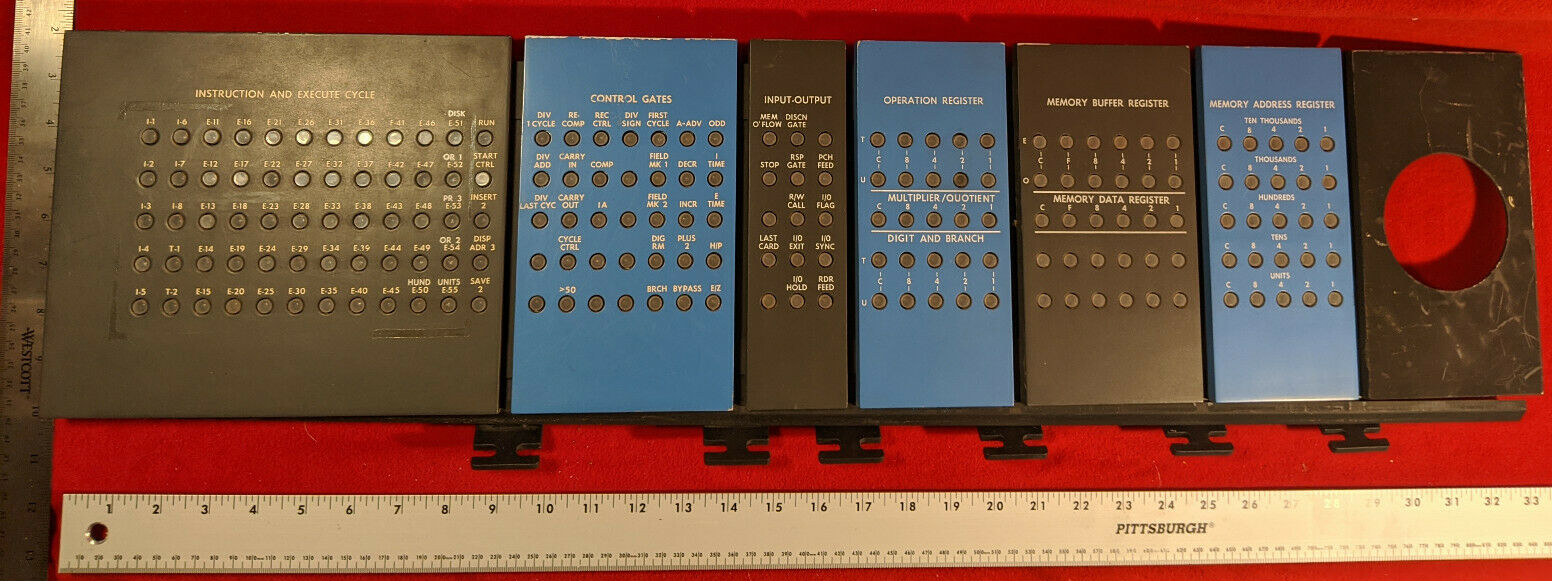

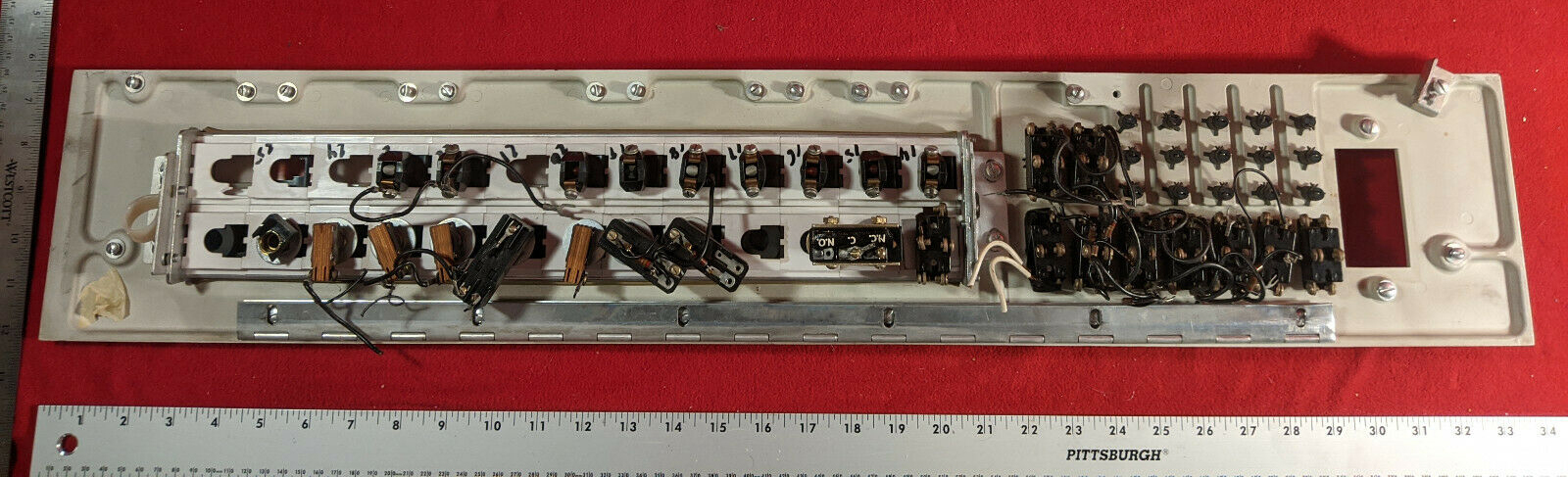

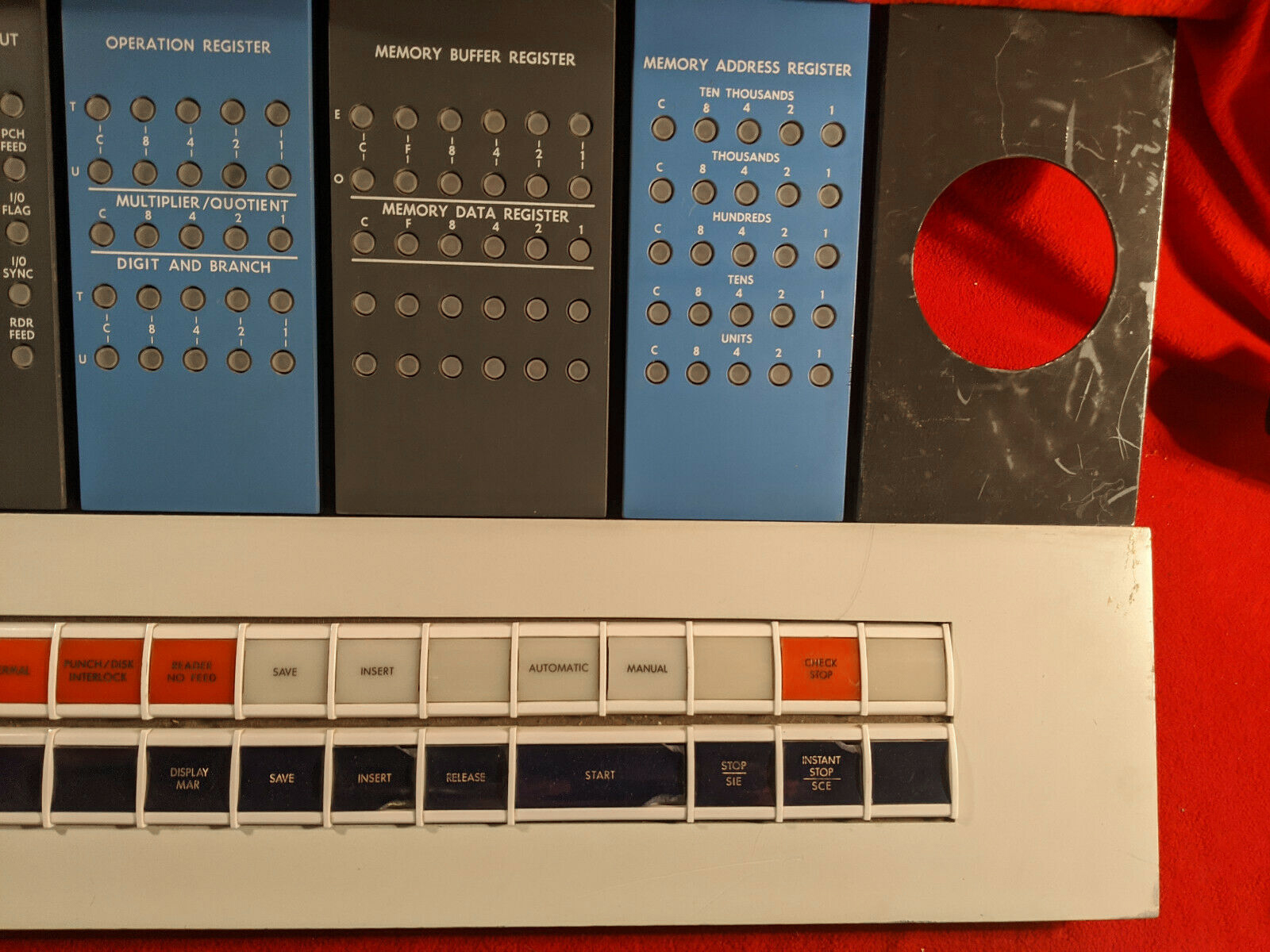

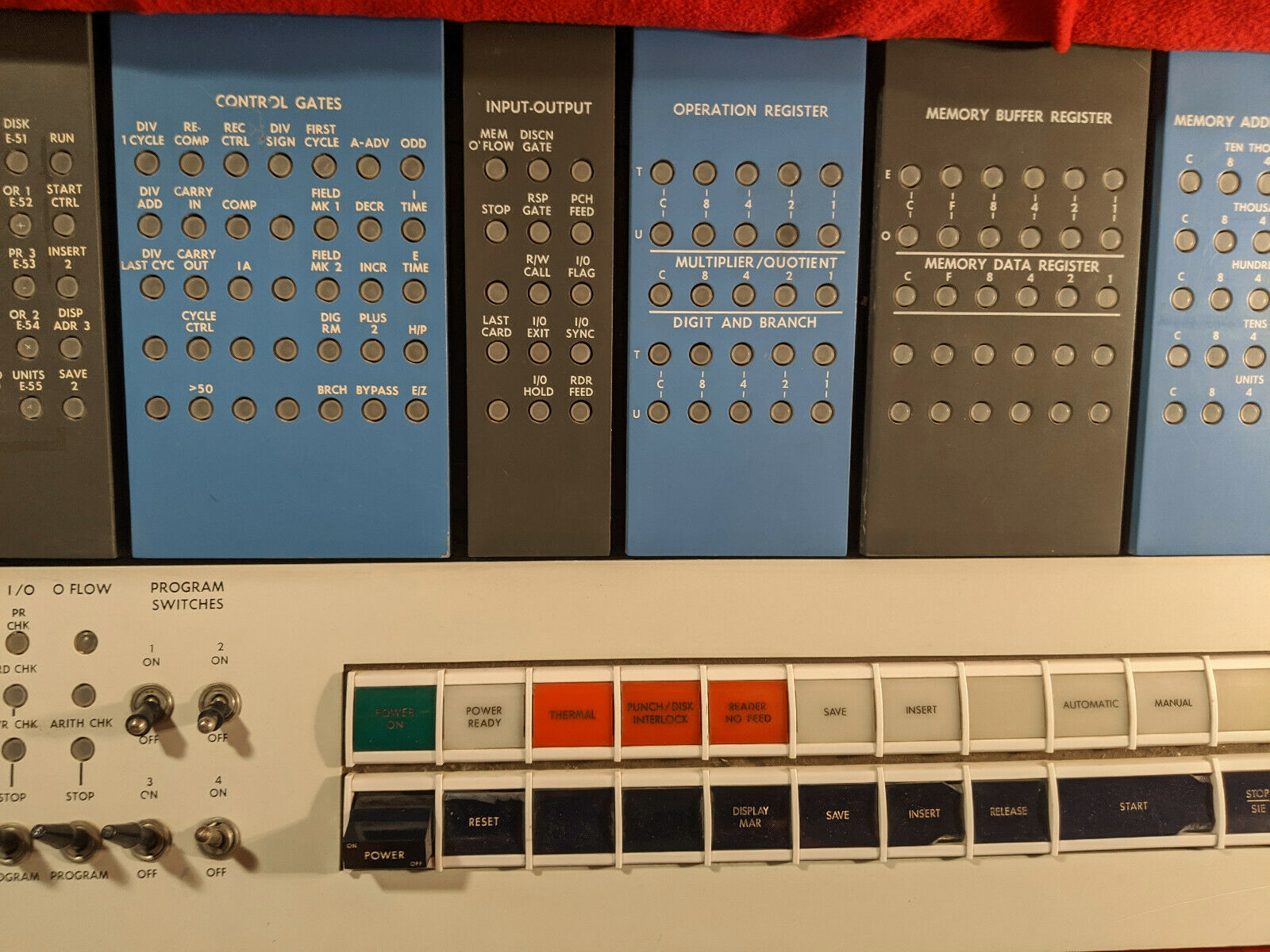

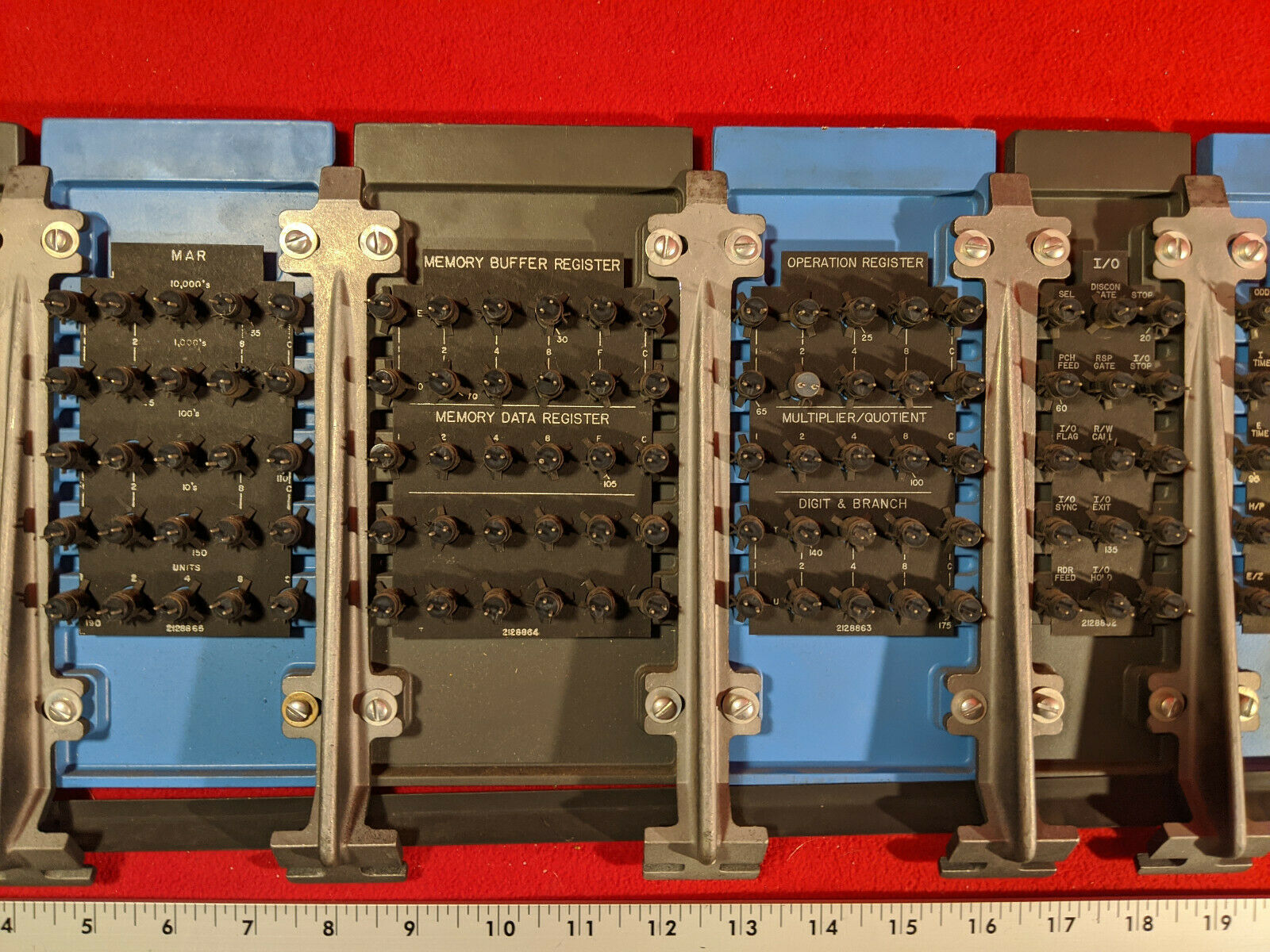

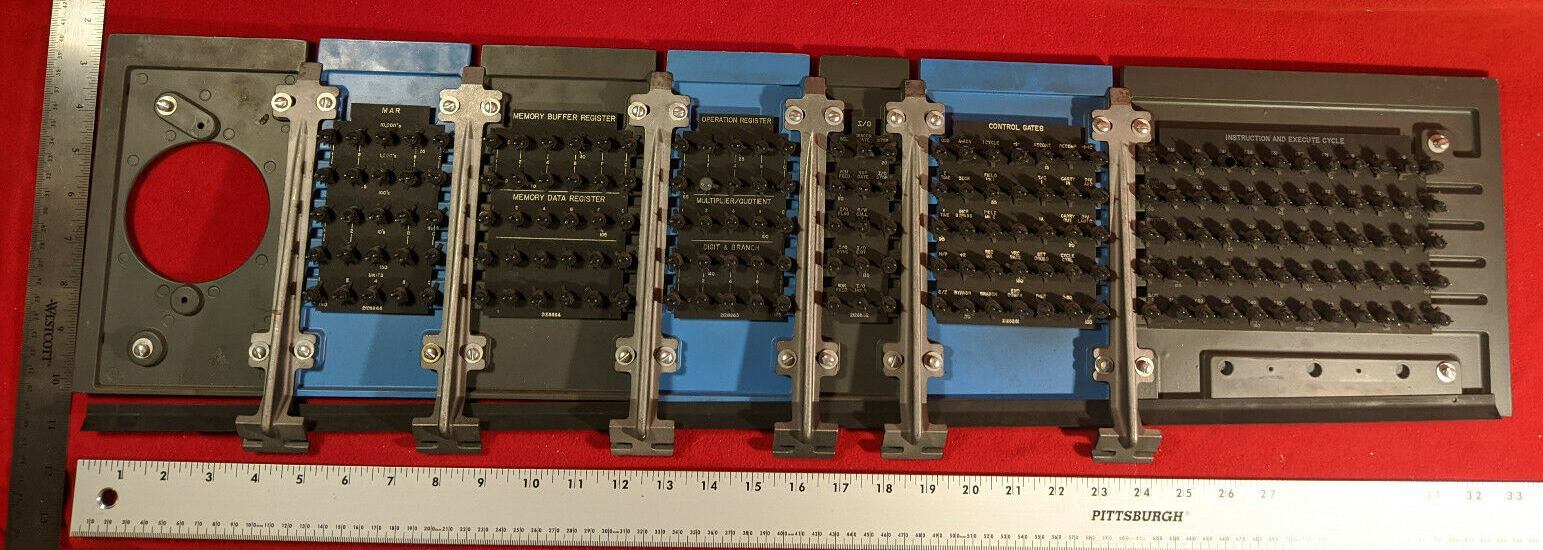

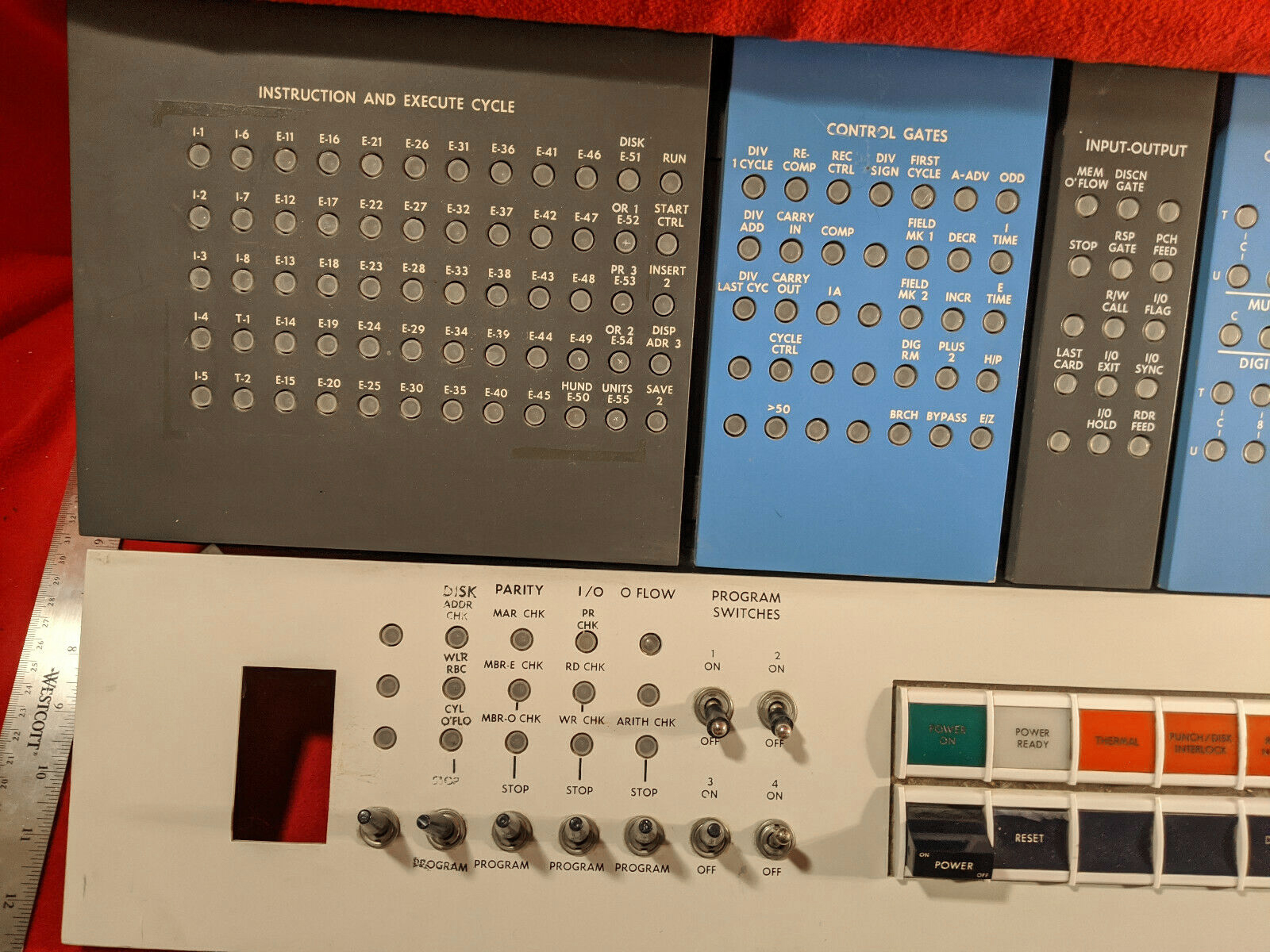

Panel as received from ebay

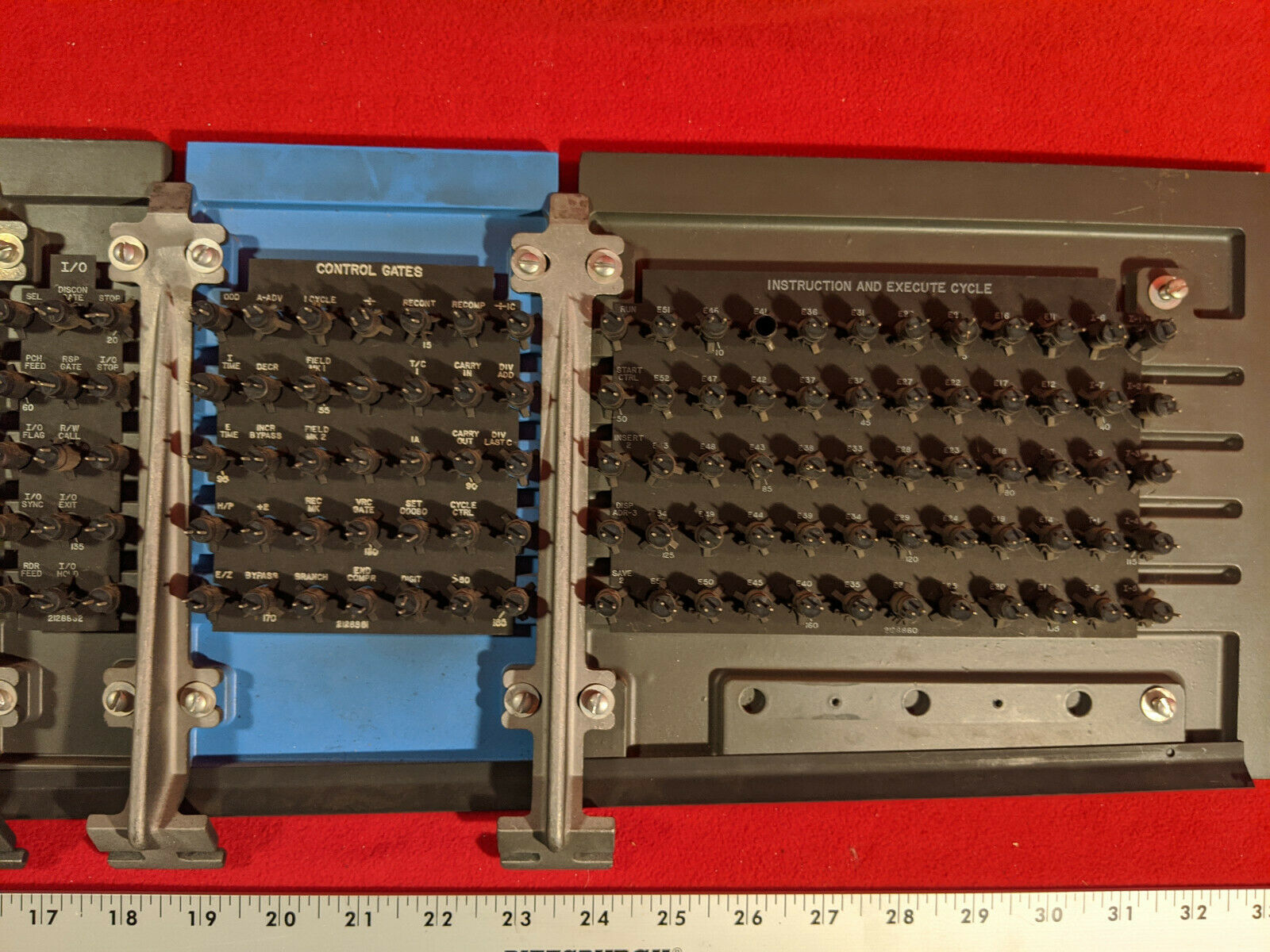

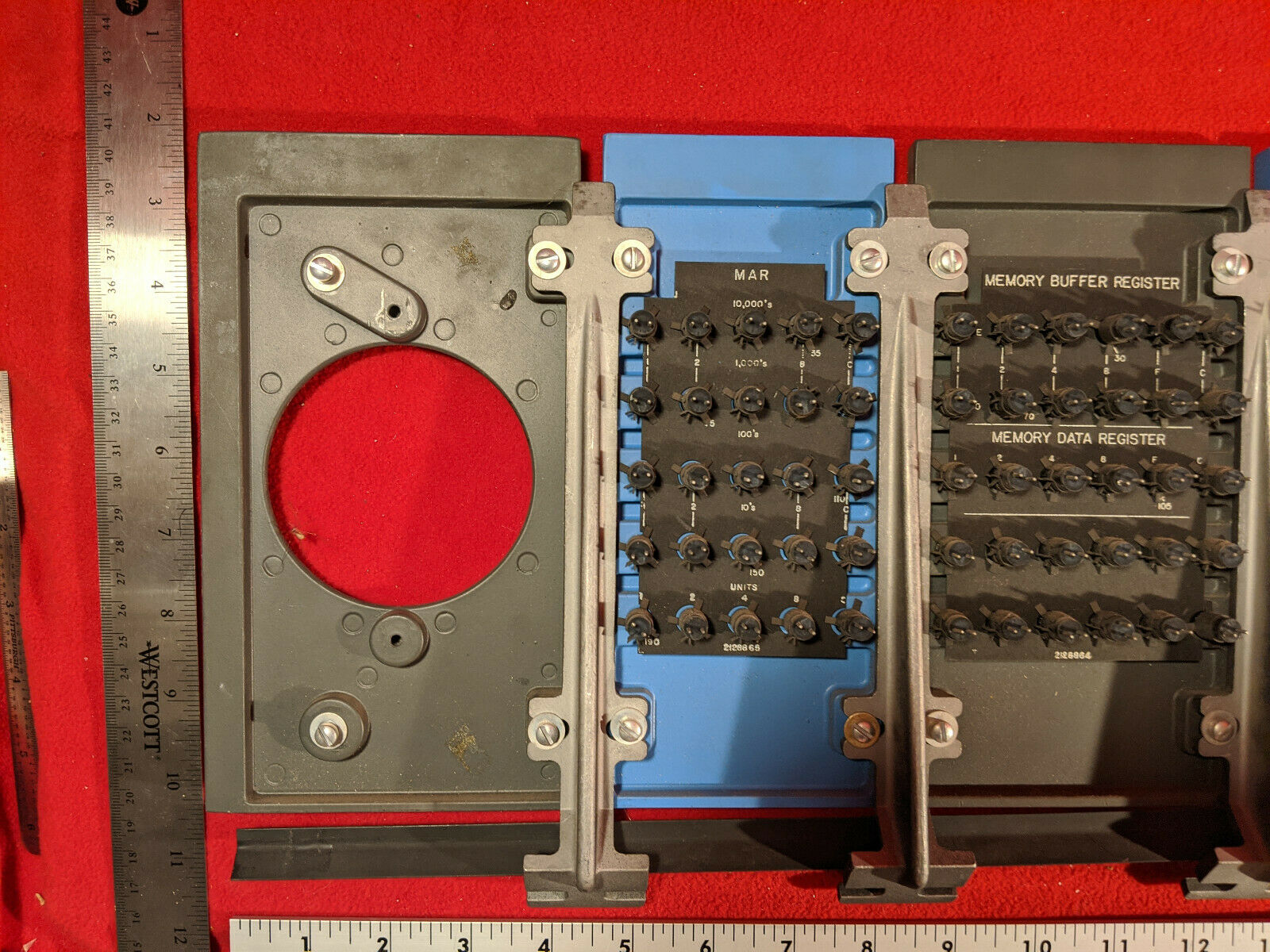

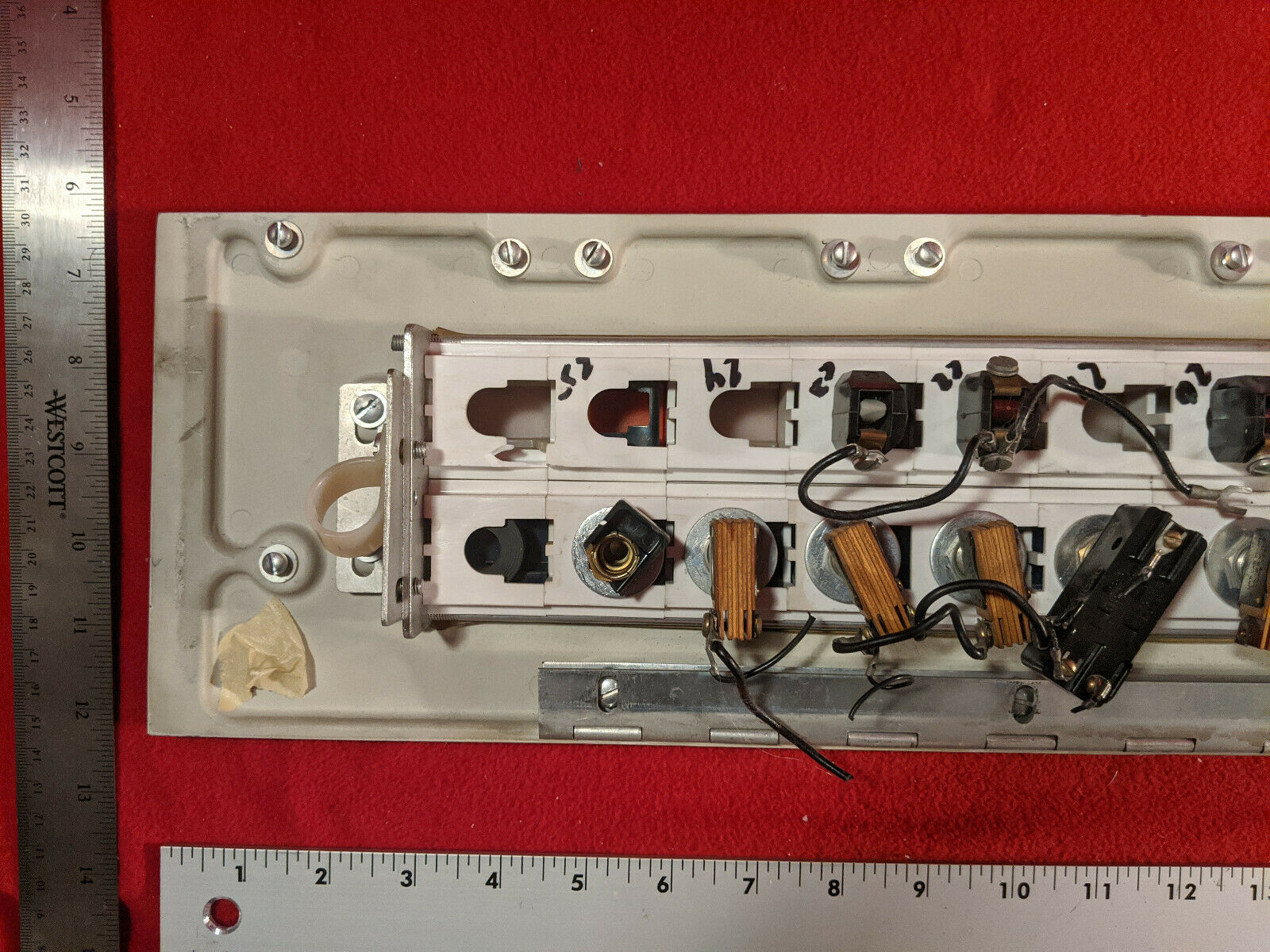

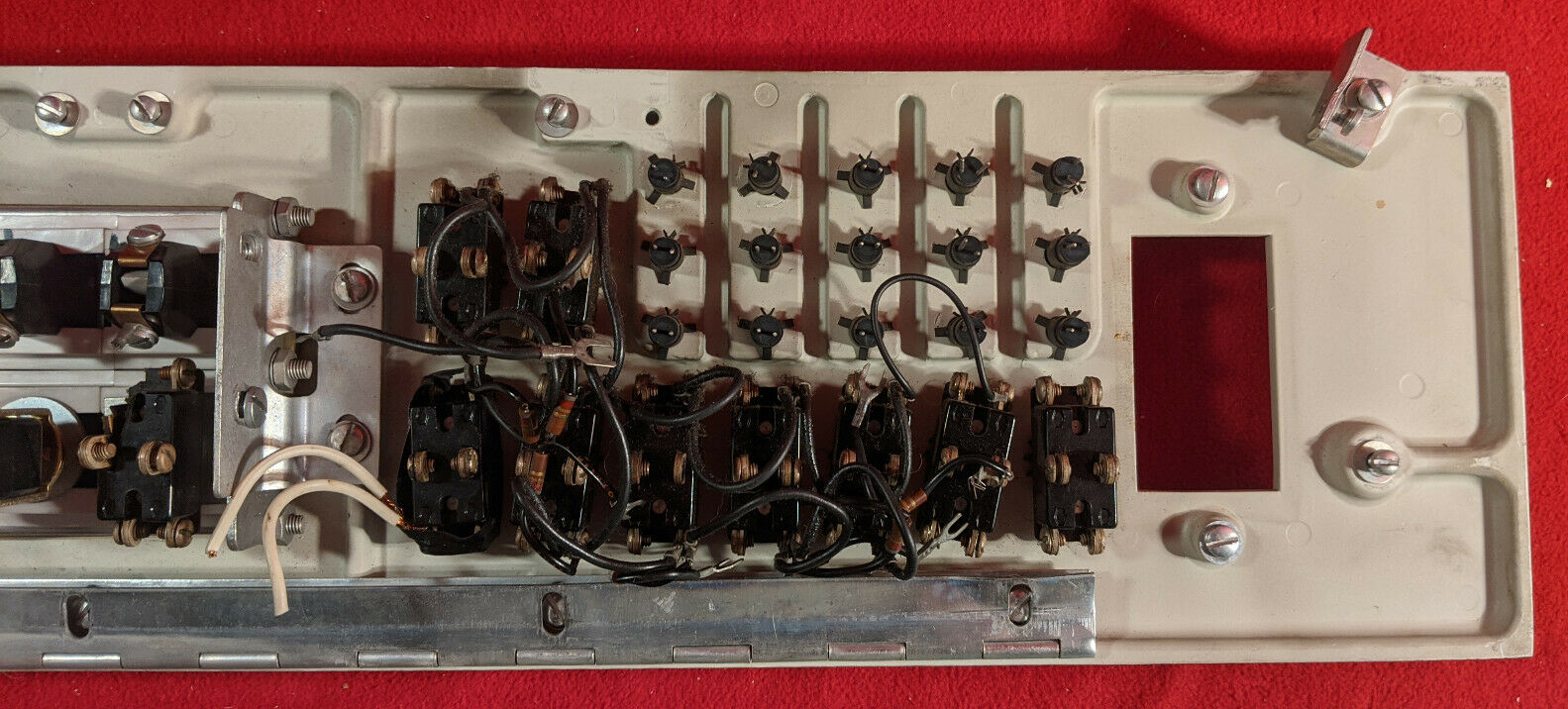

A lot of broken and missing switches and lights

I decided to replace all the 10 volt incandesent lamps with LEDs

I decided to use 8mm jumbo white diffused LEDs

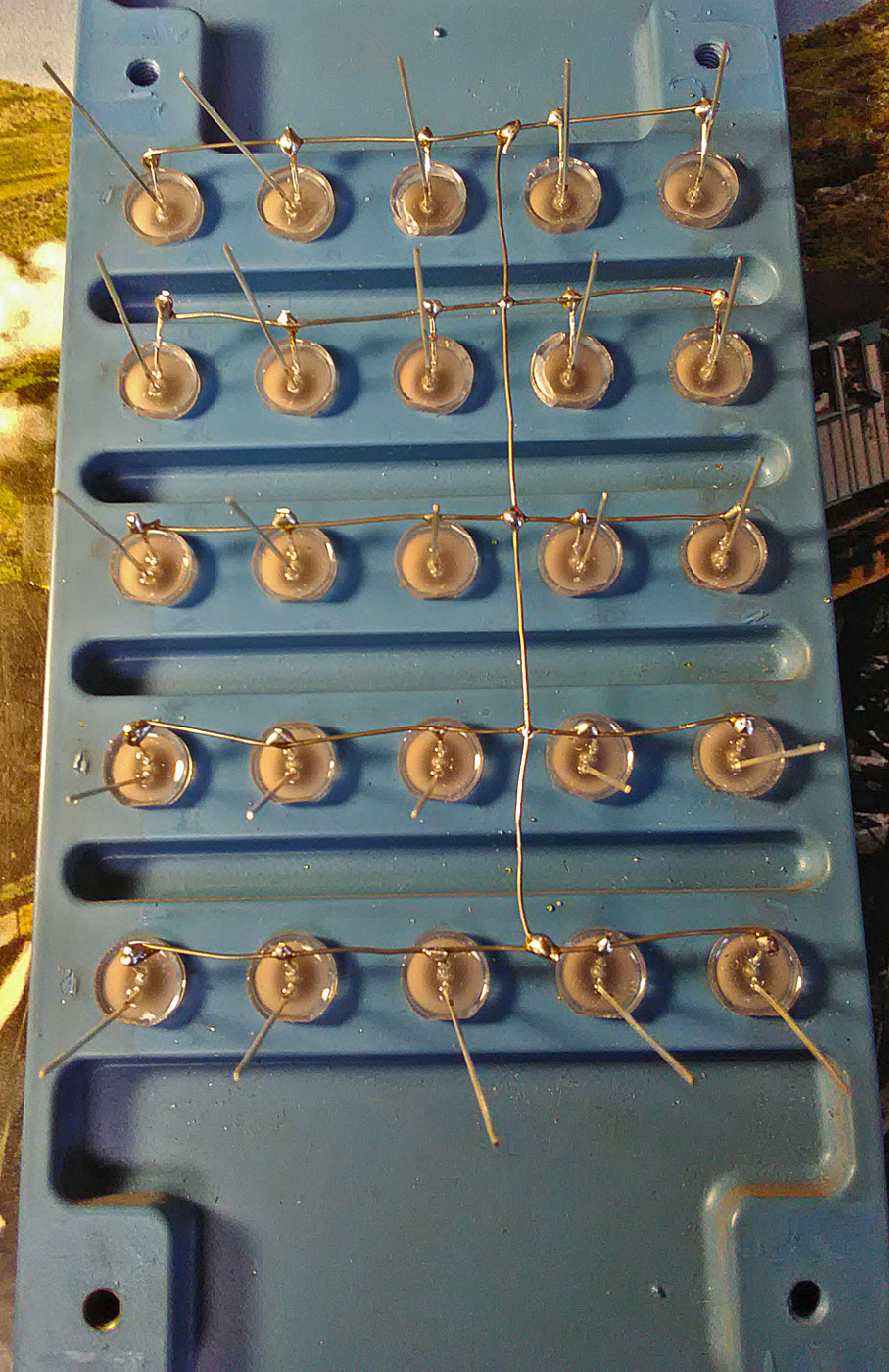

Common Anode

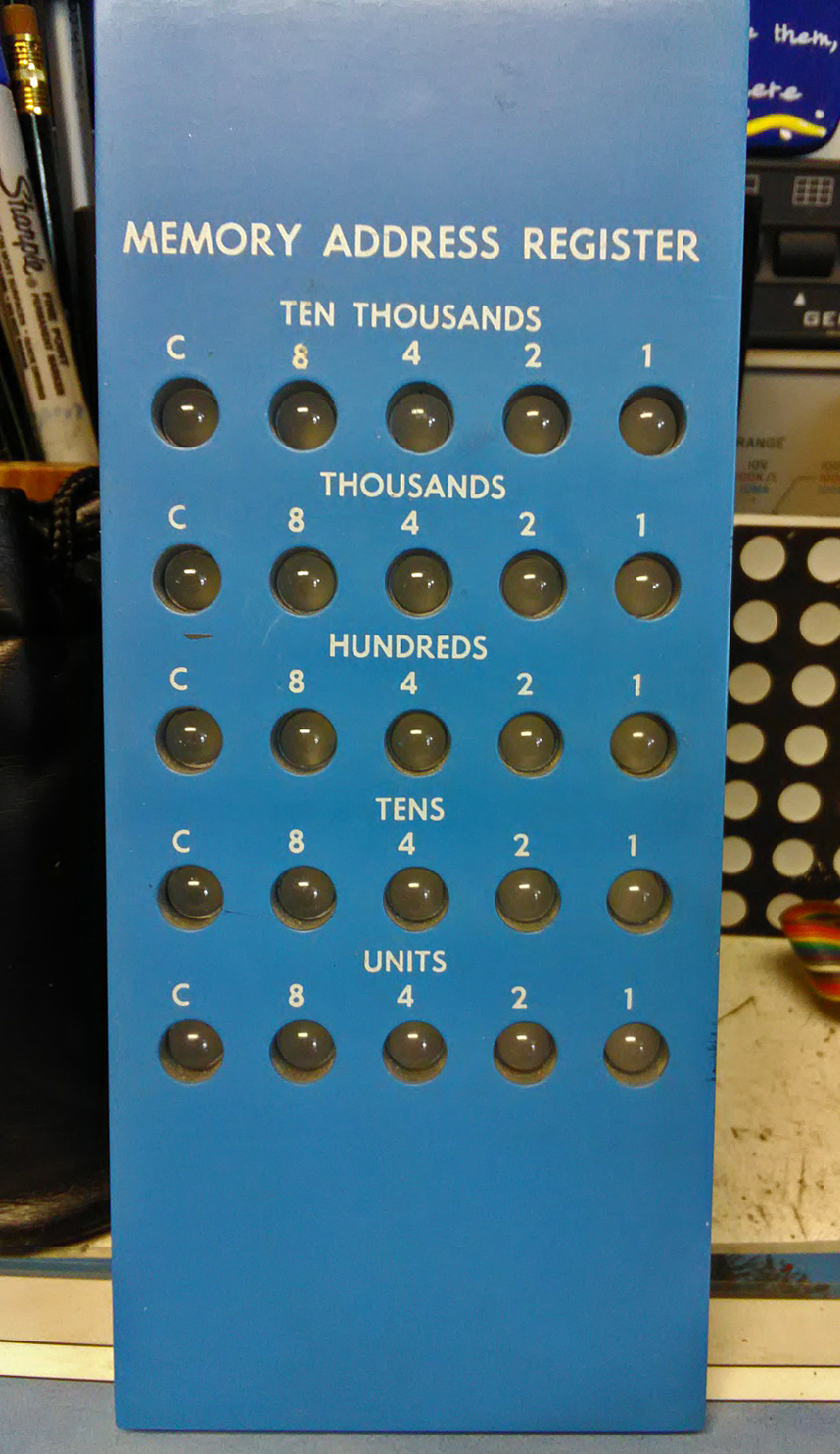

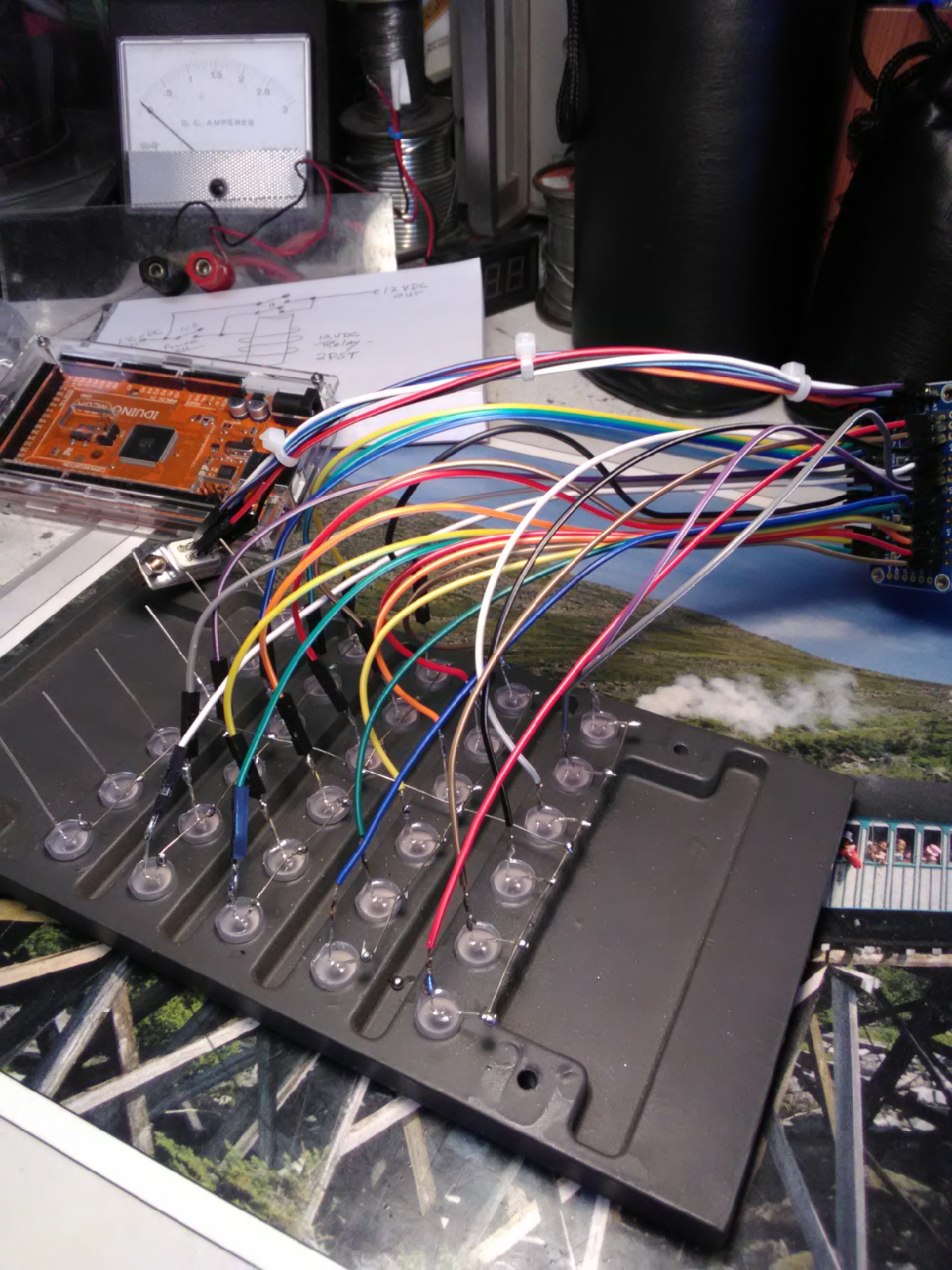

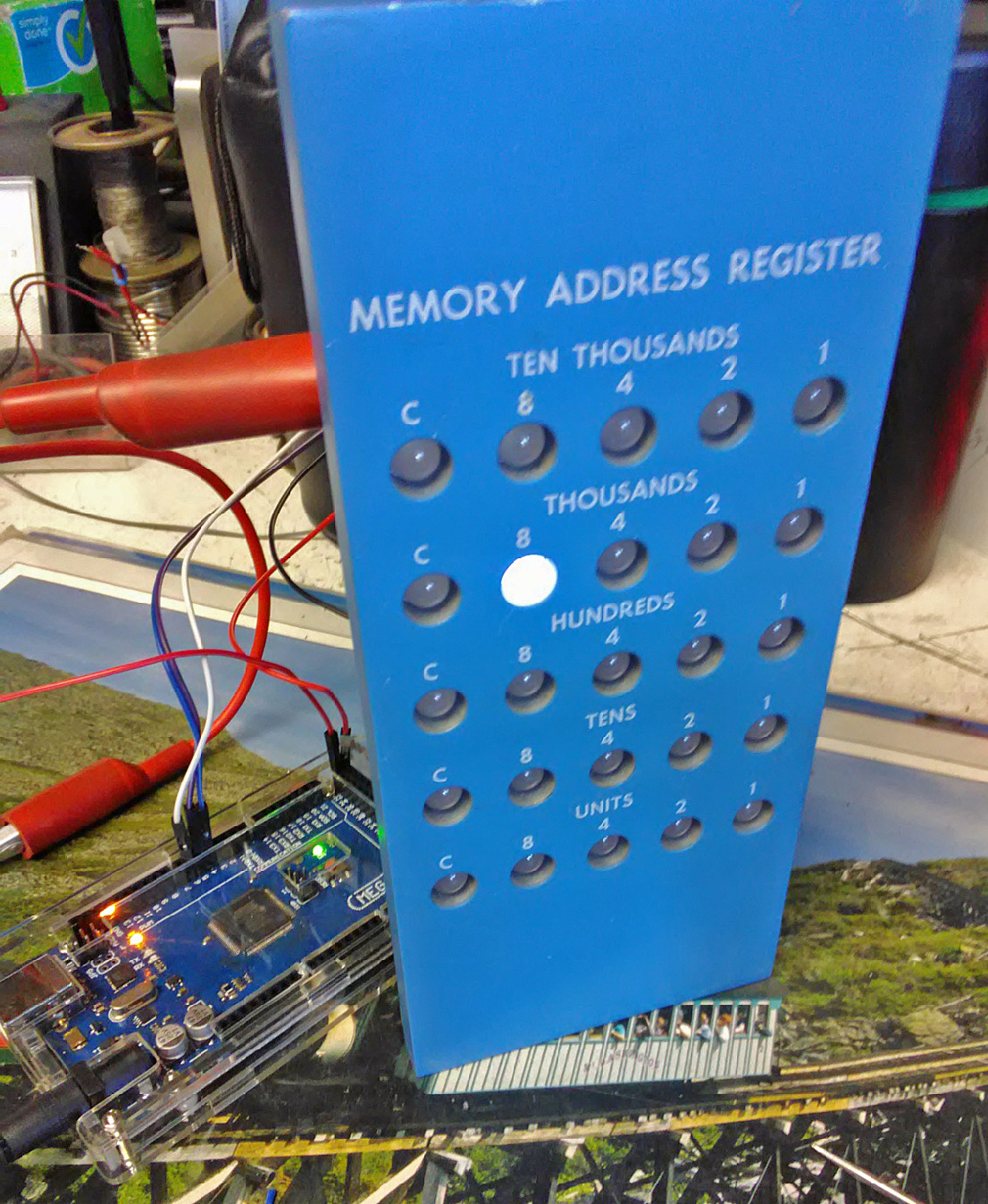

First Test to see how they look

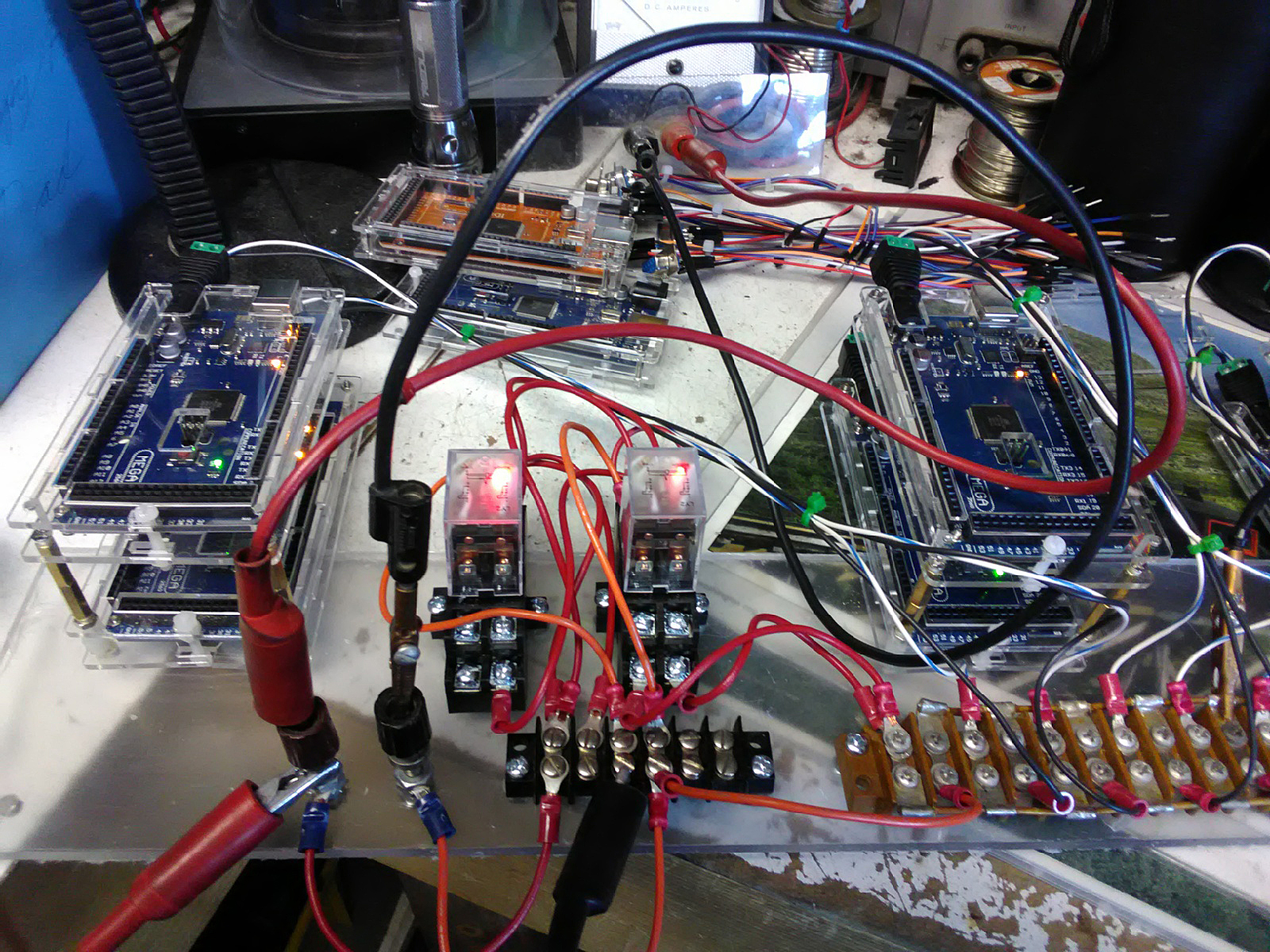

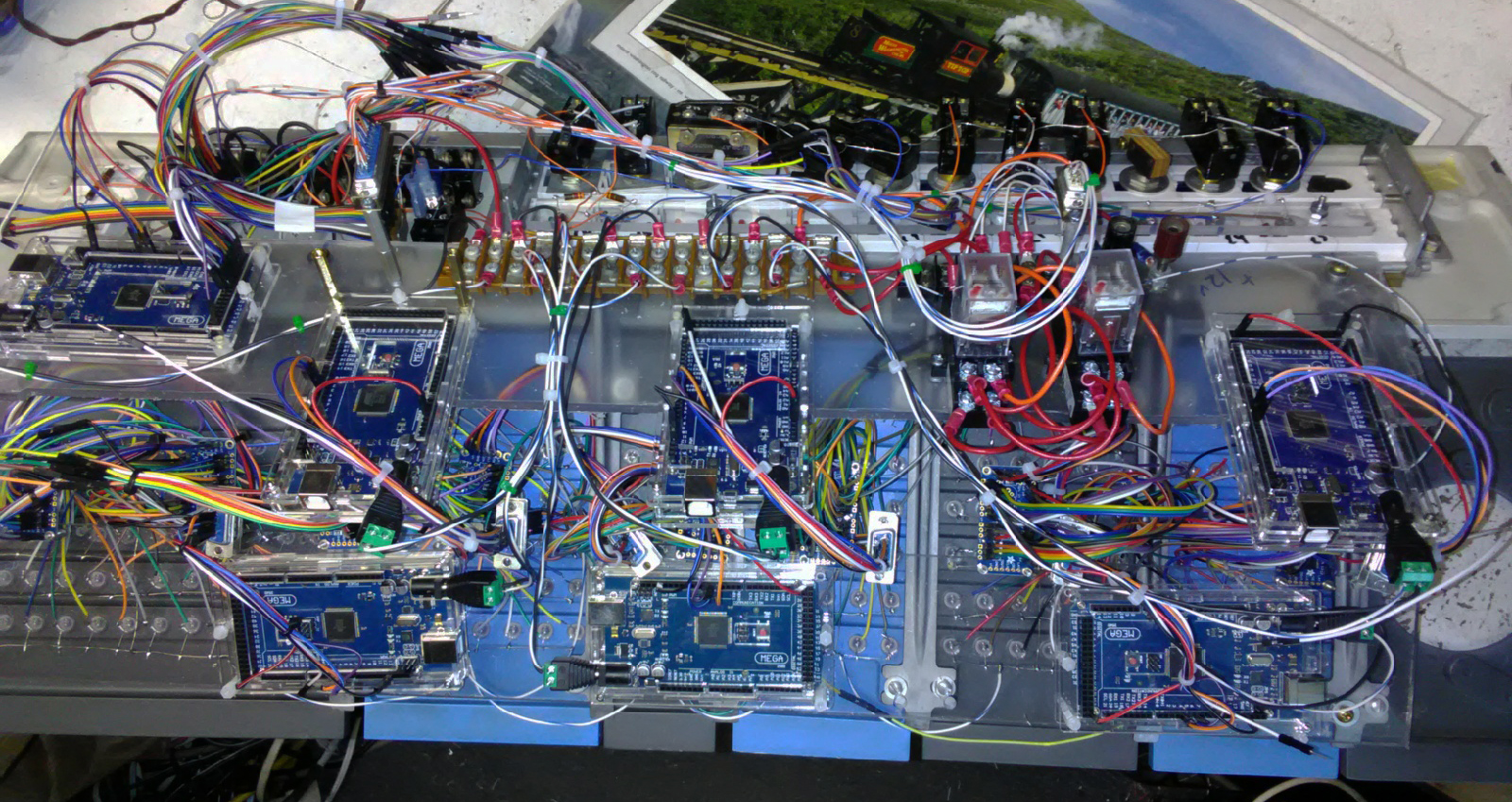

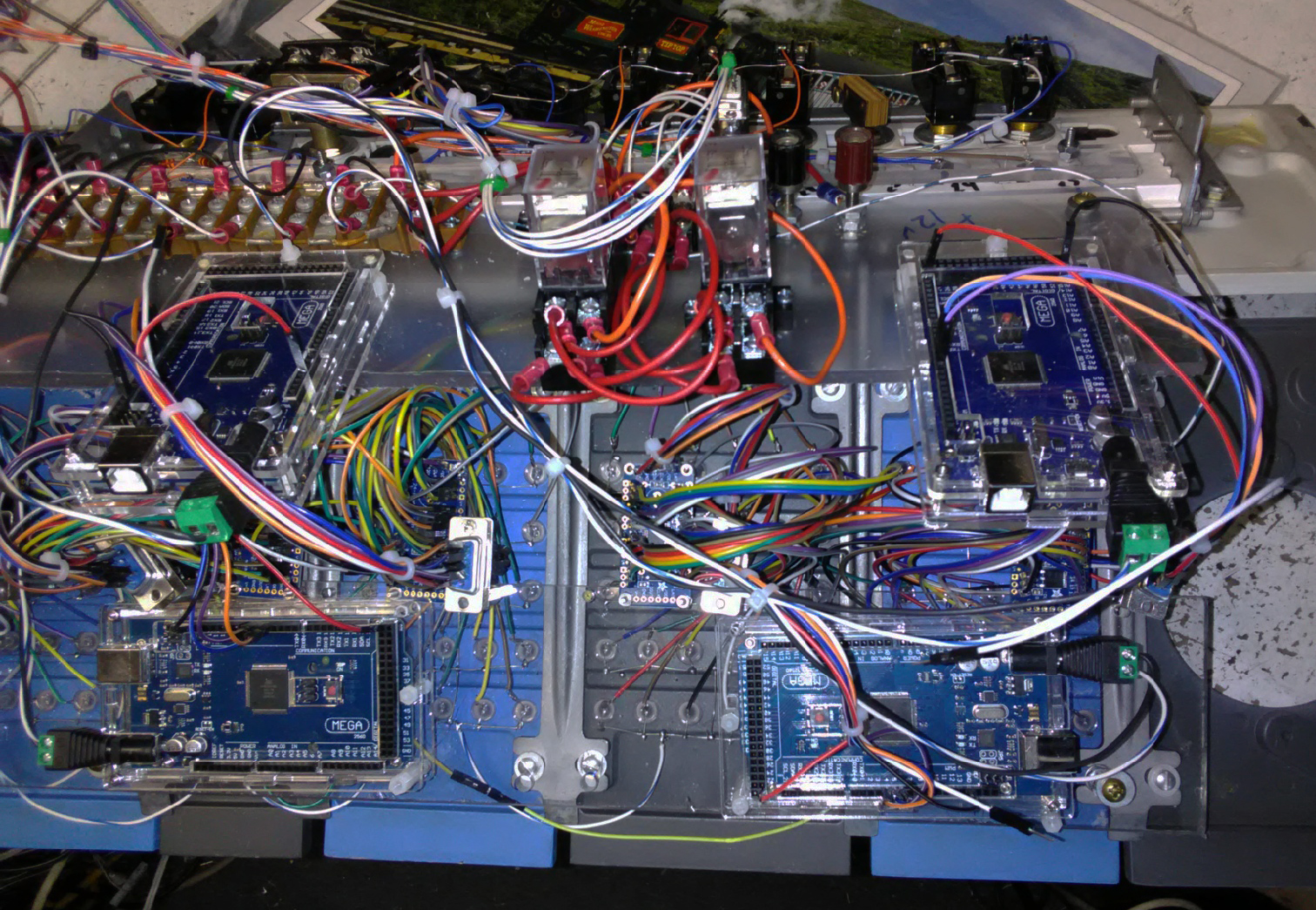

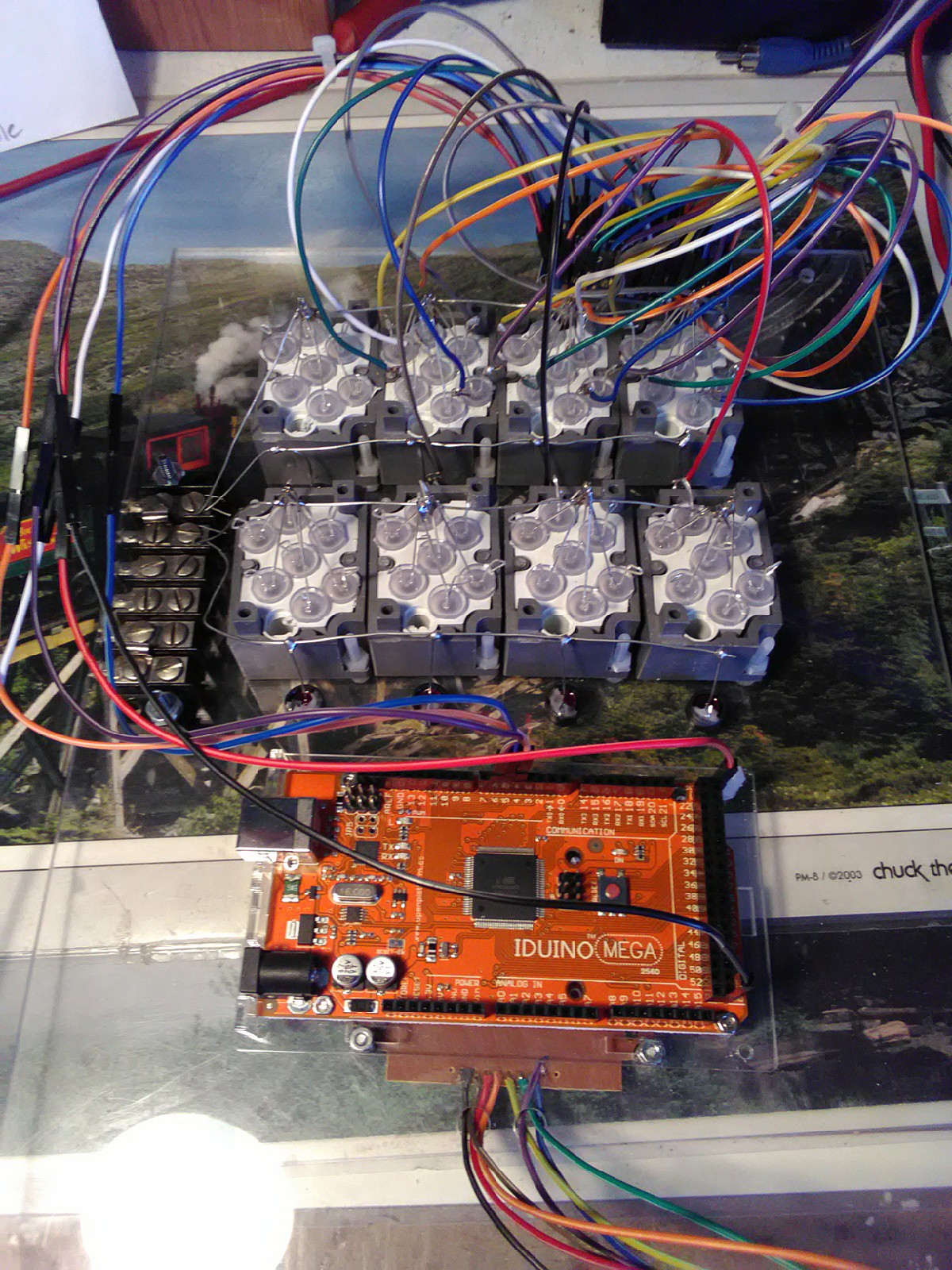

Using Arduino-Mega and a TLC5974 driver to run the panels

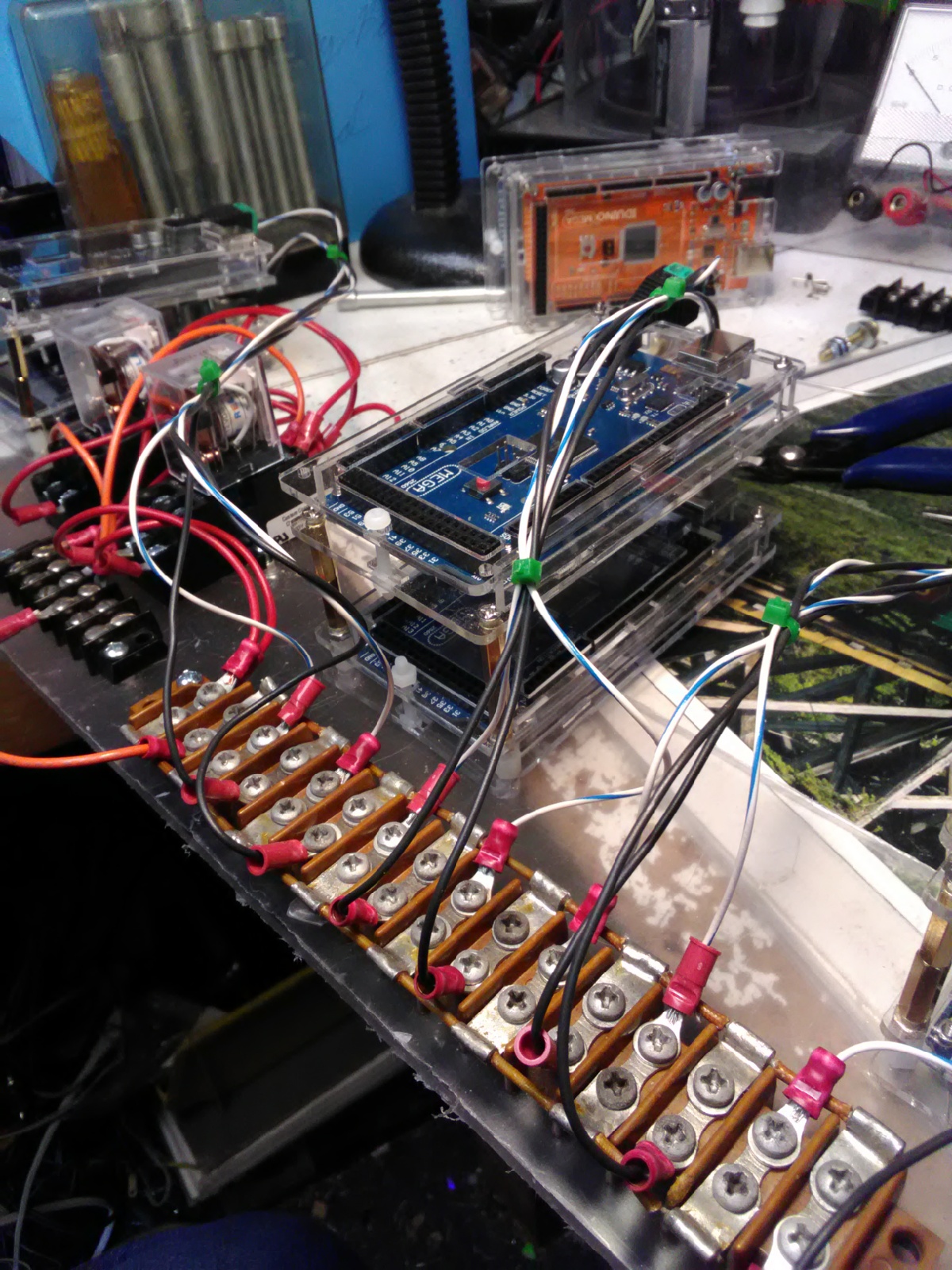

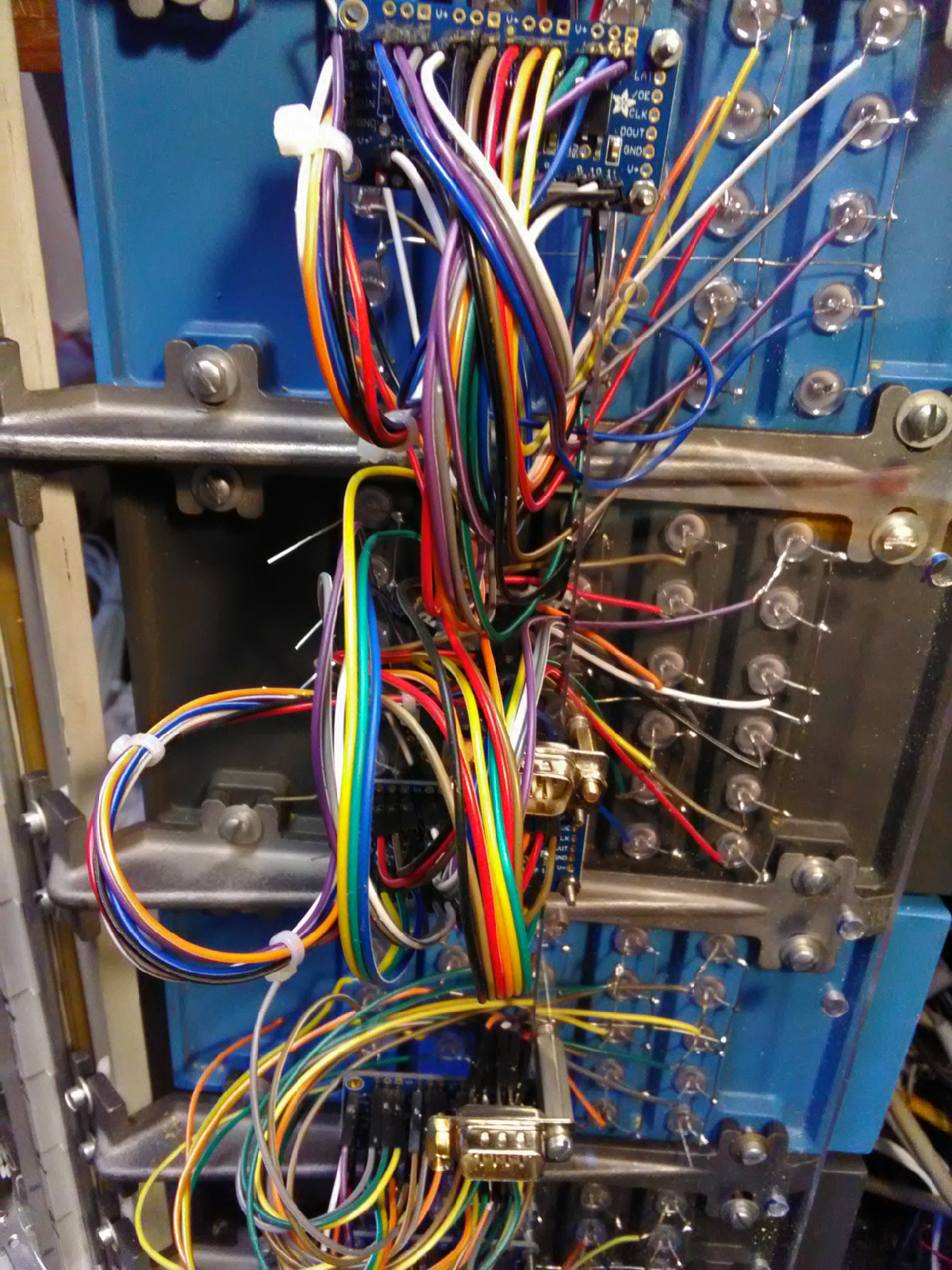

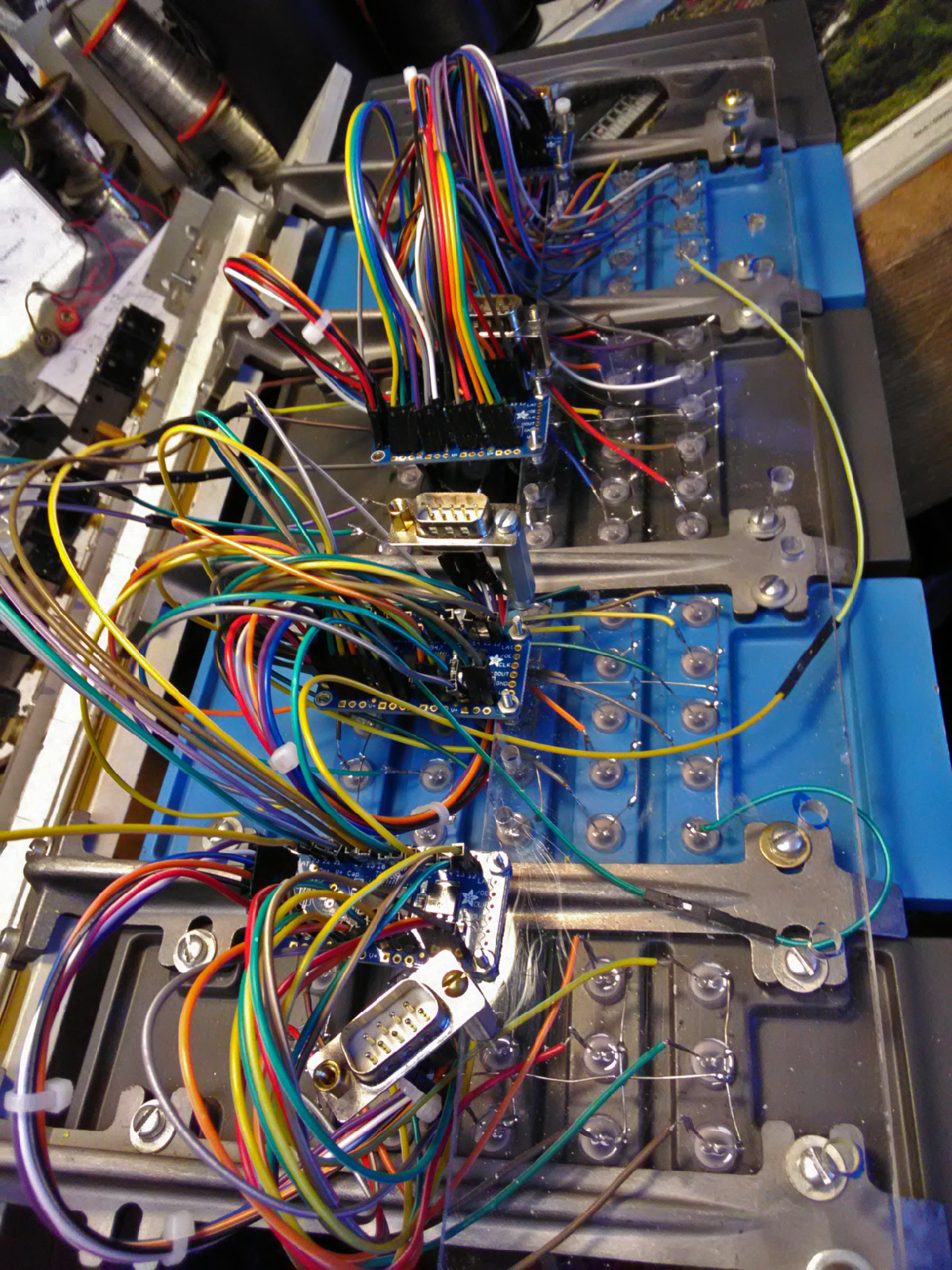

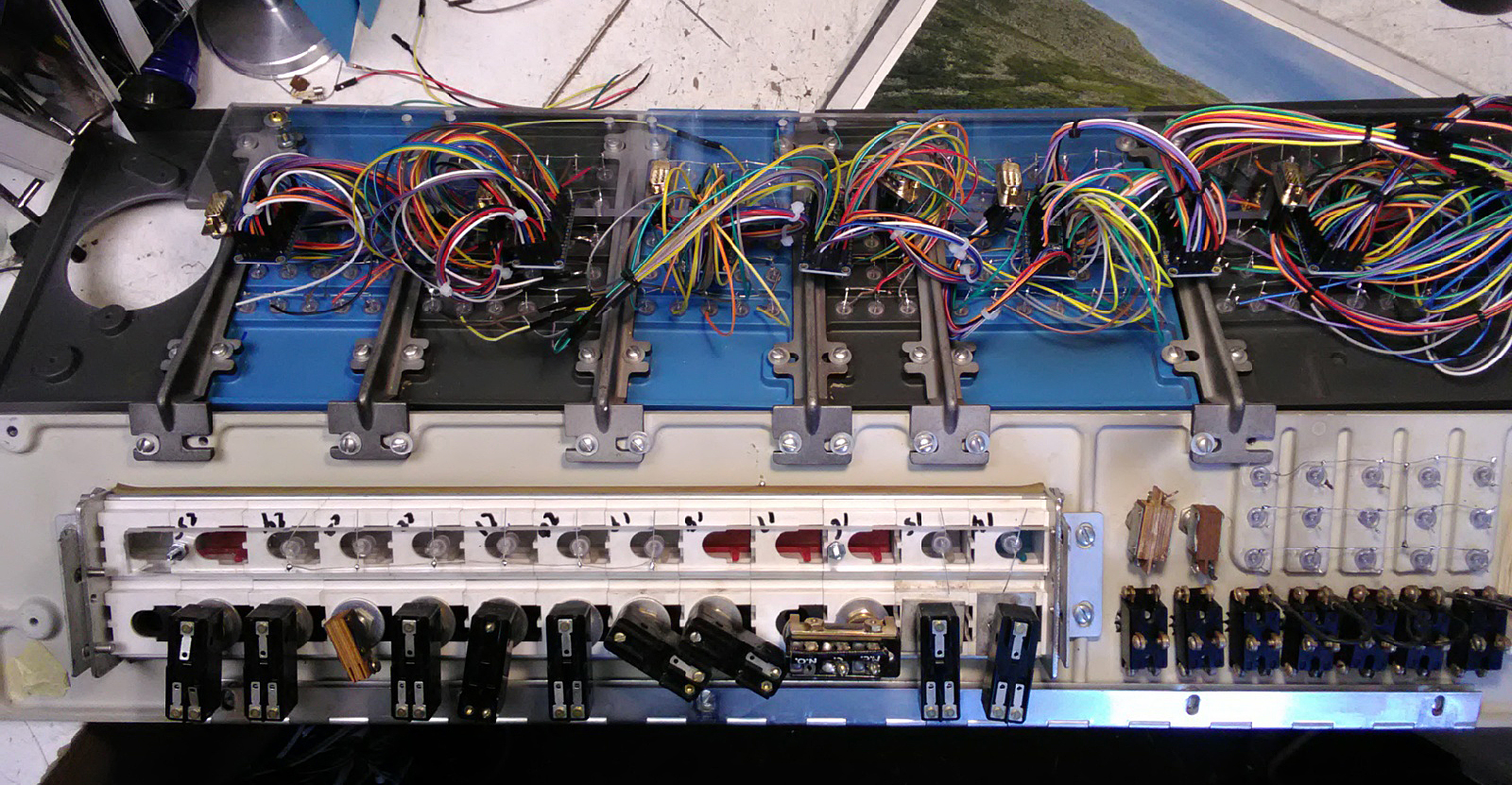

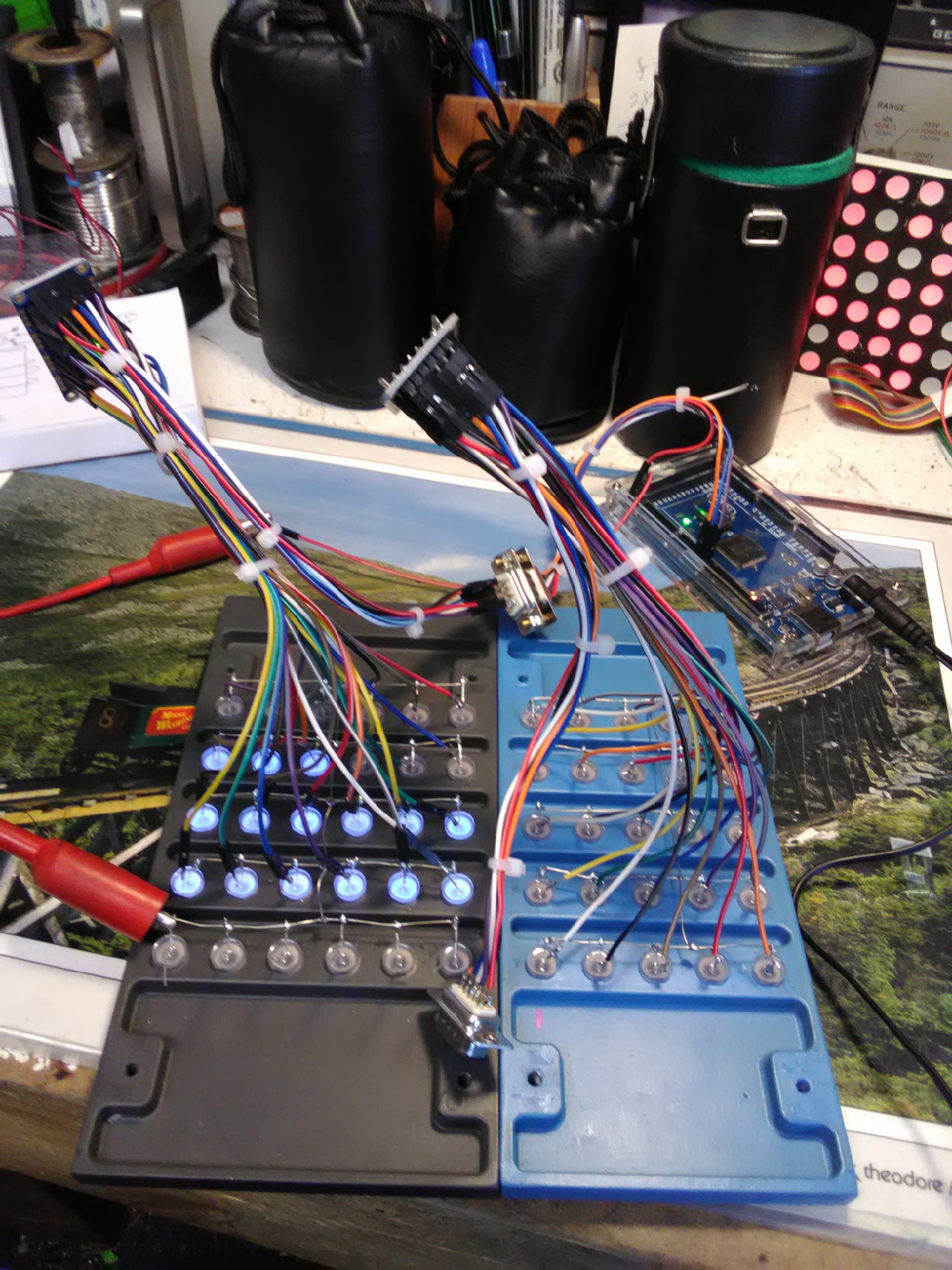

One panel at a time, lots of wiring

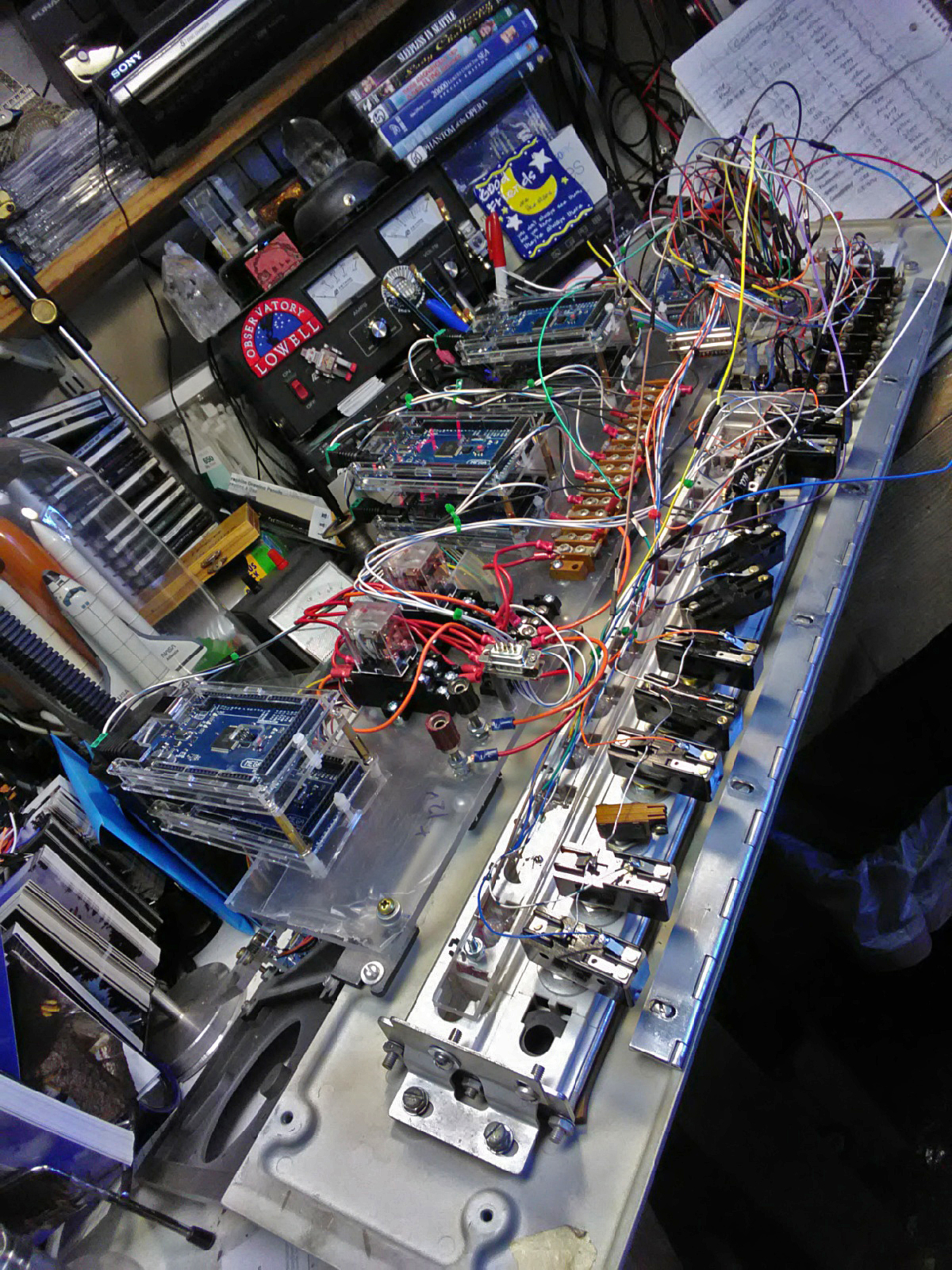

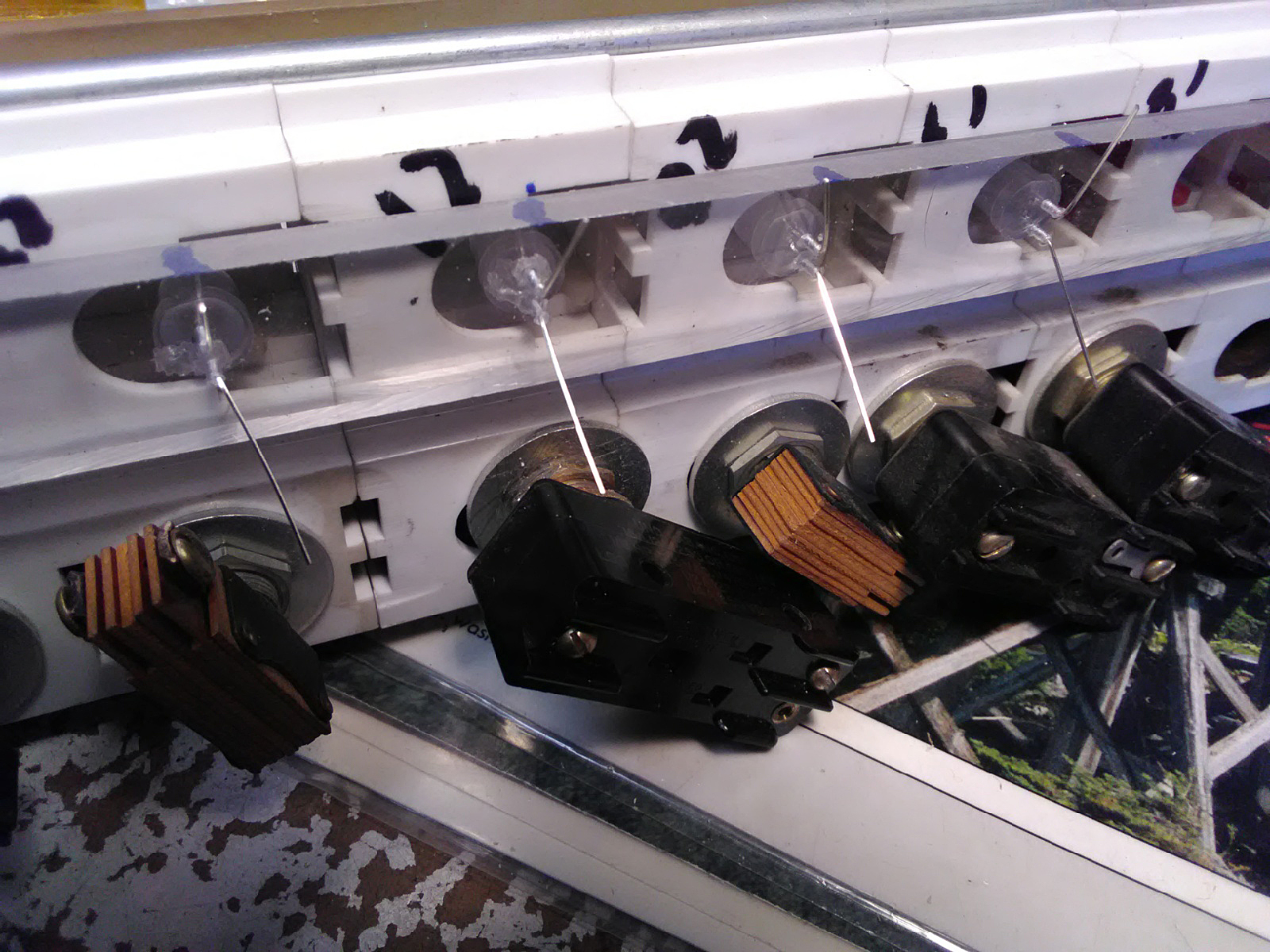

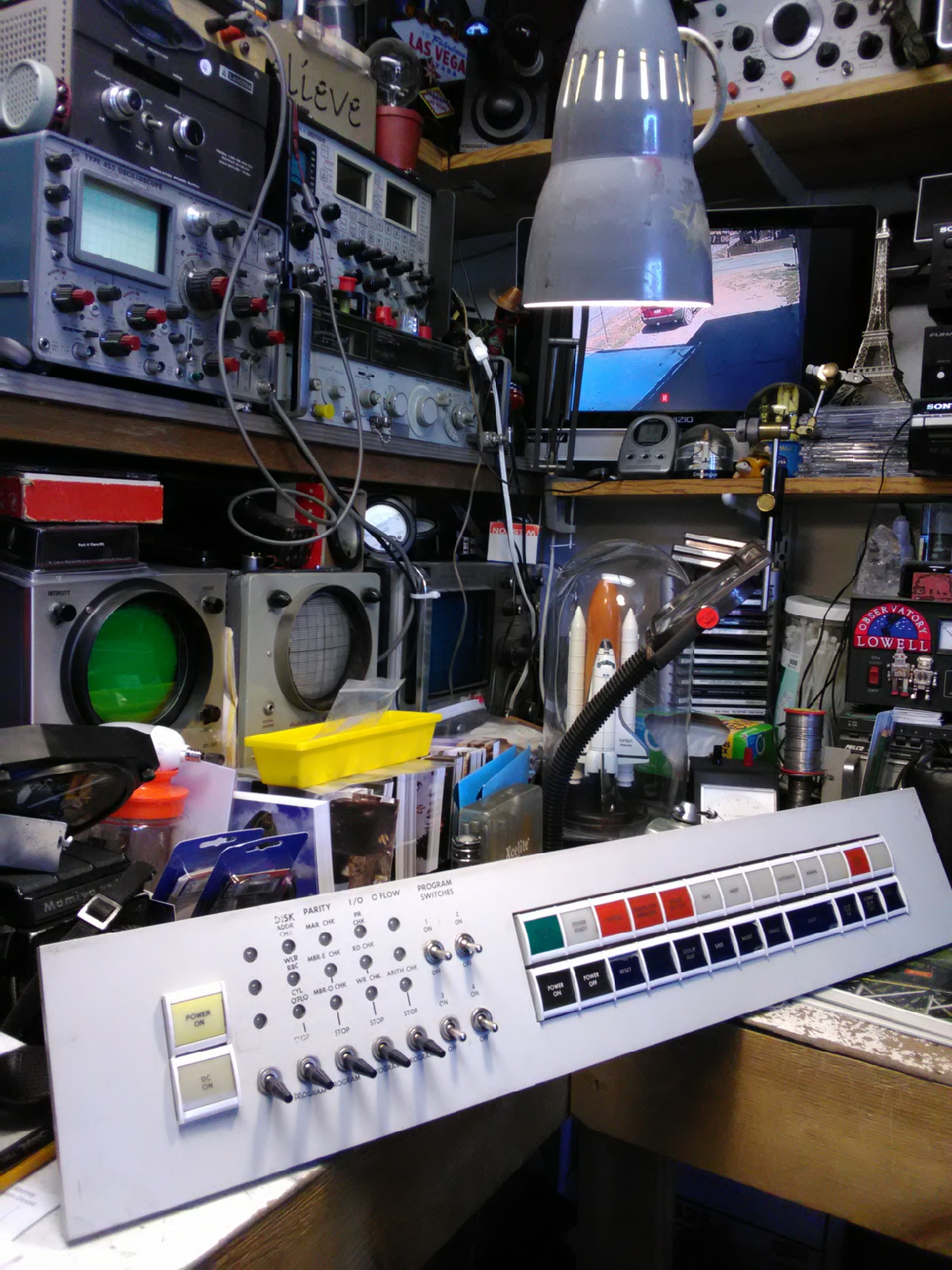

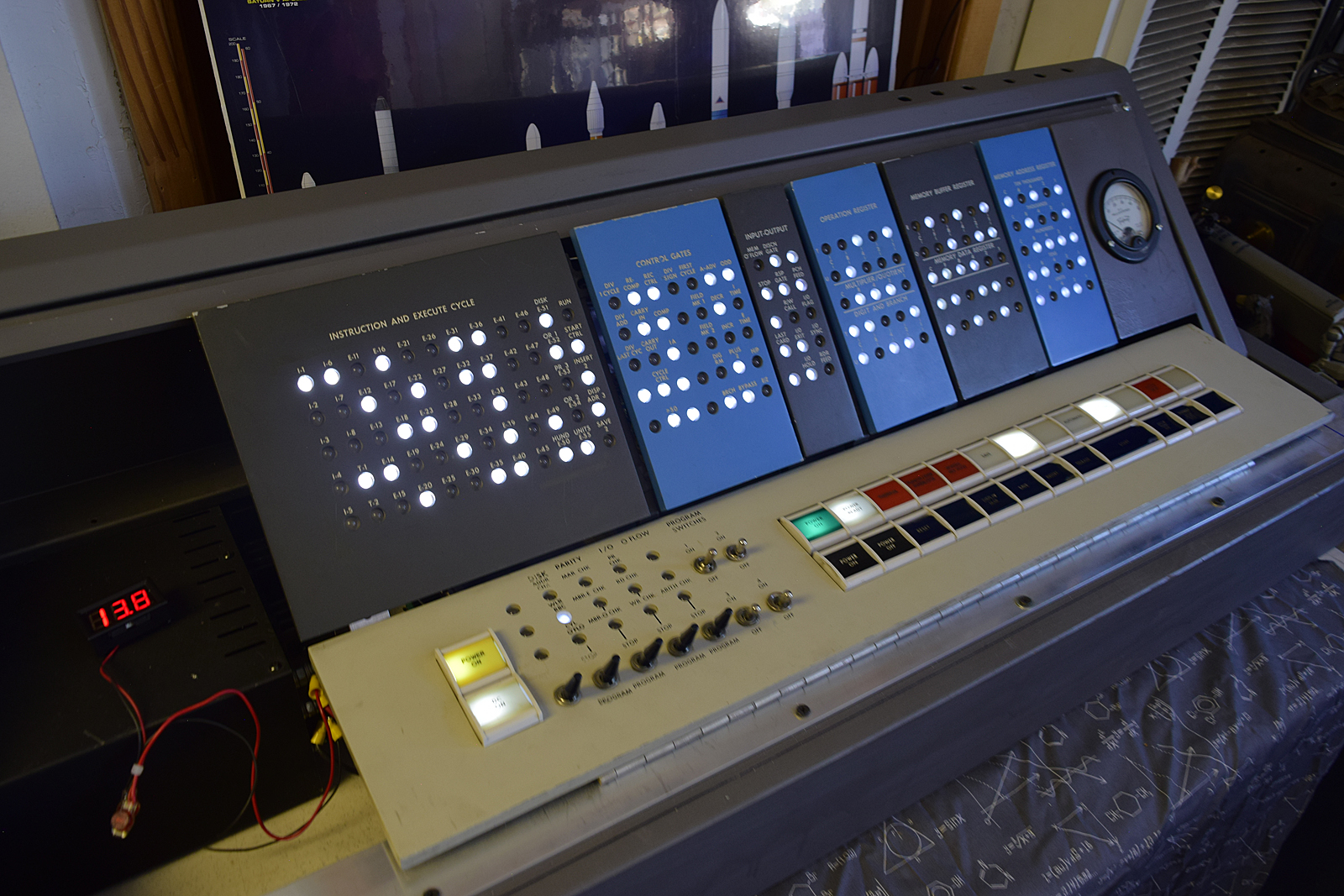

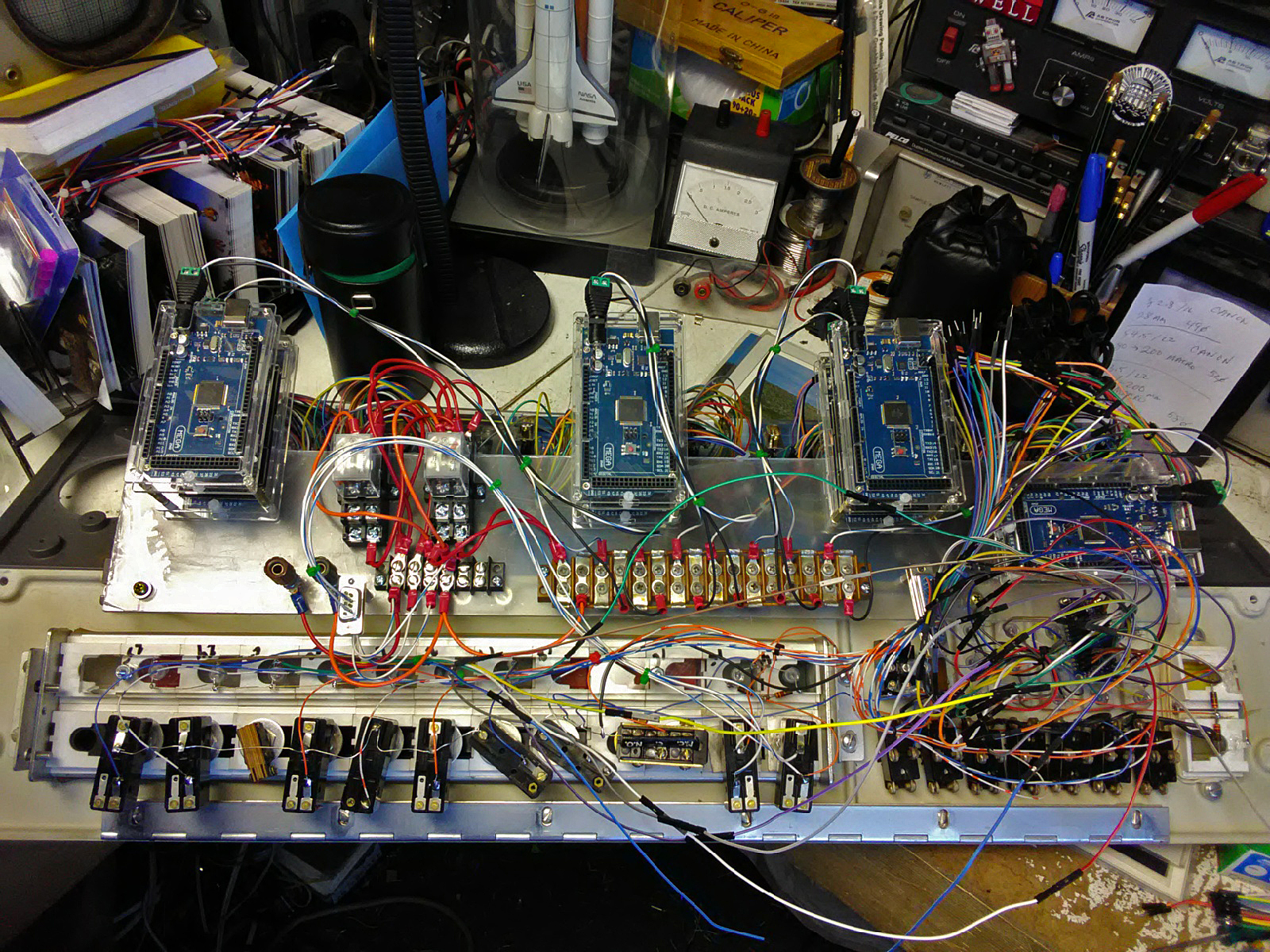

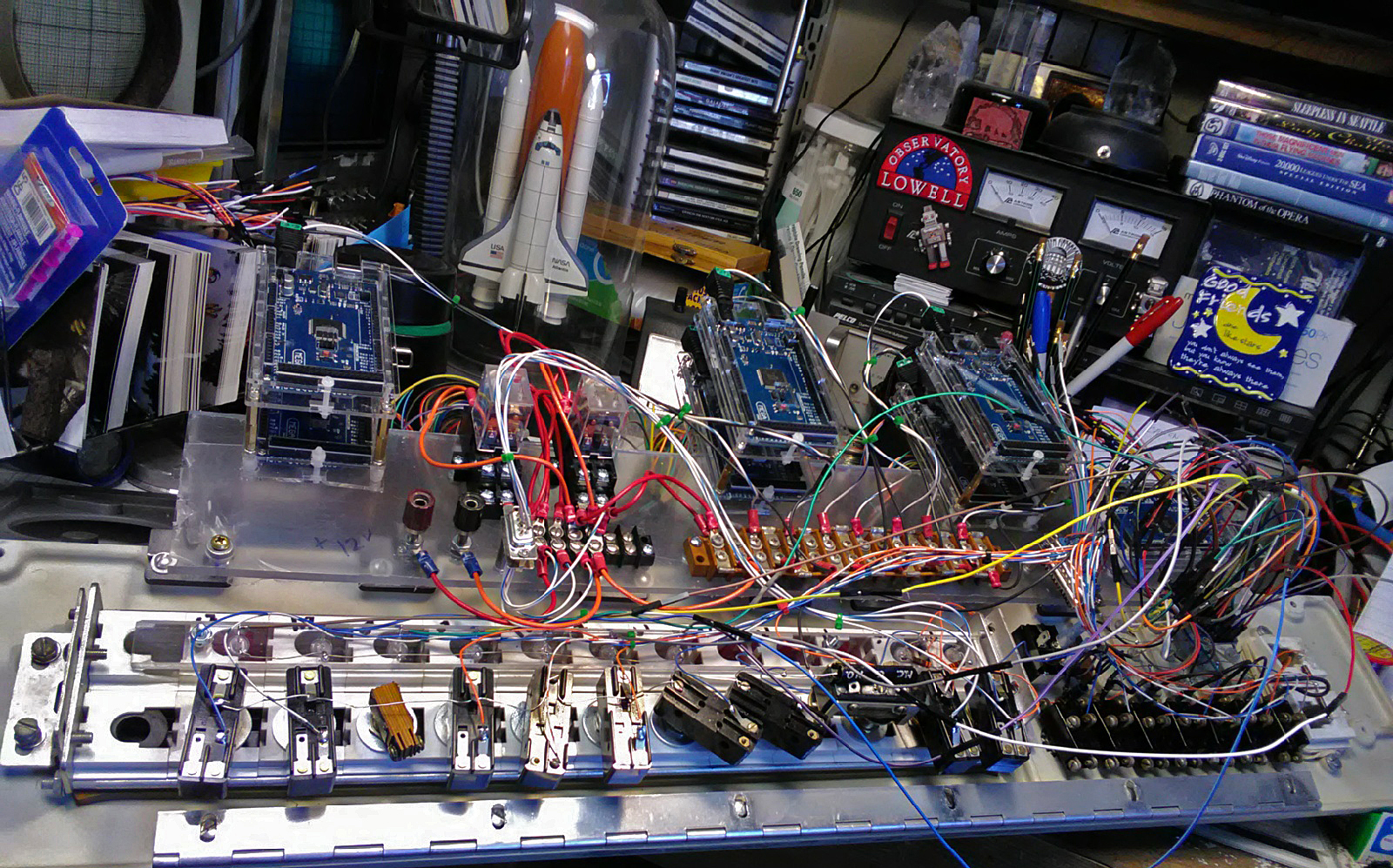

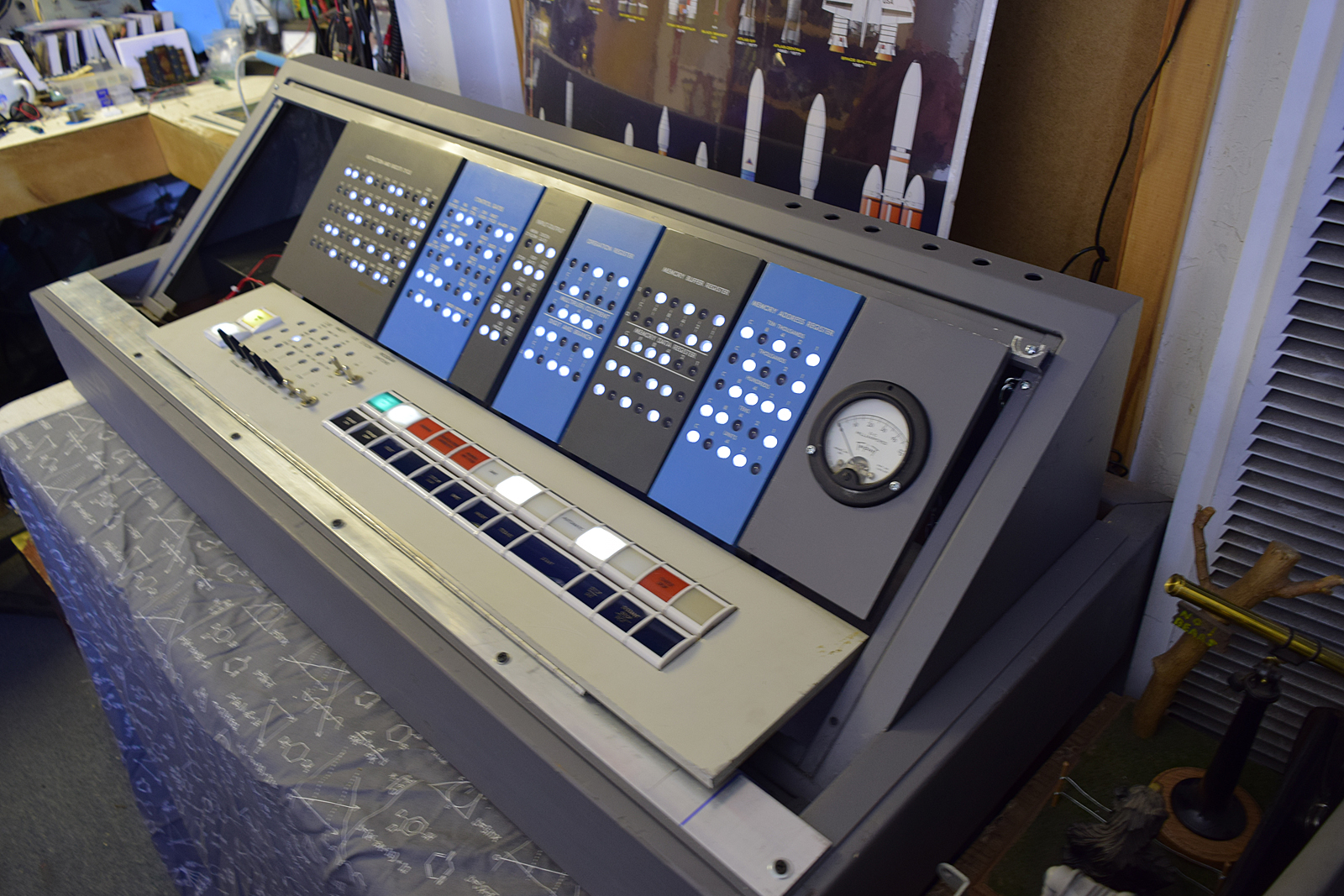

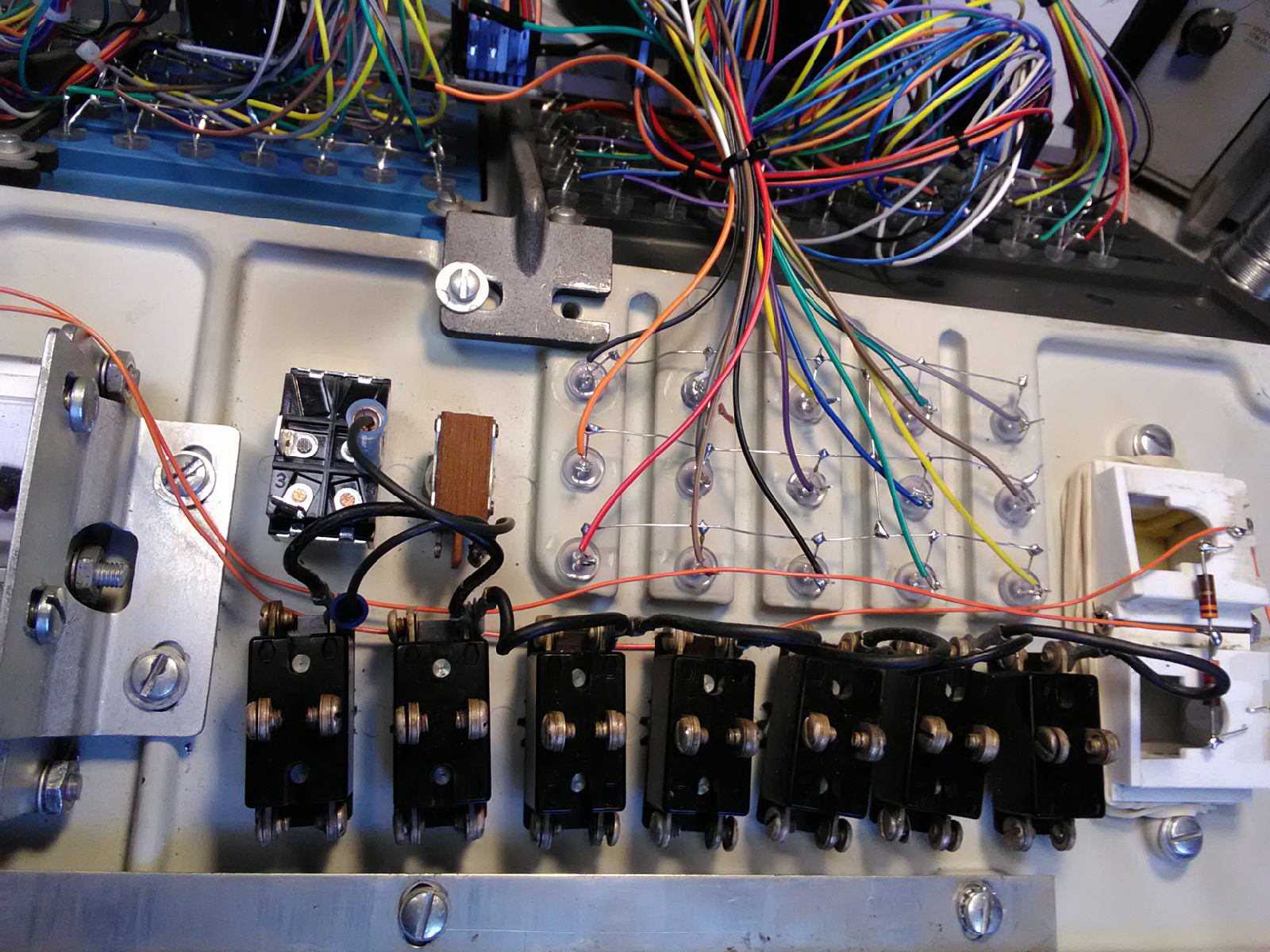

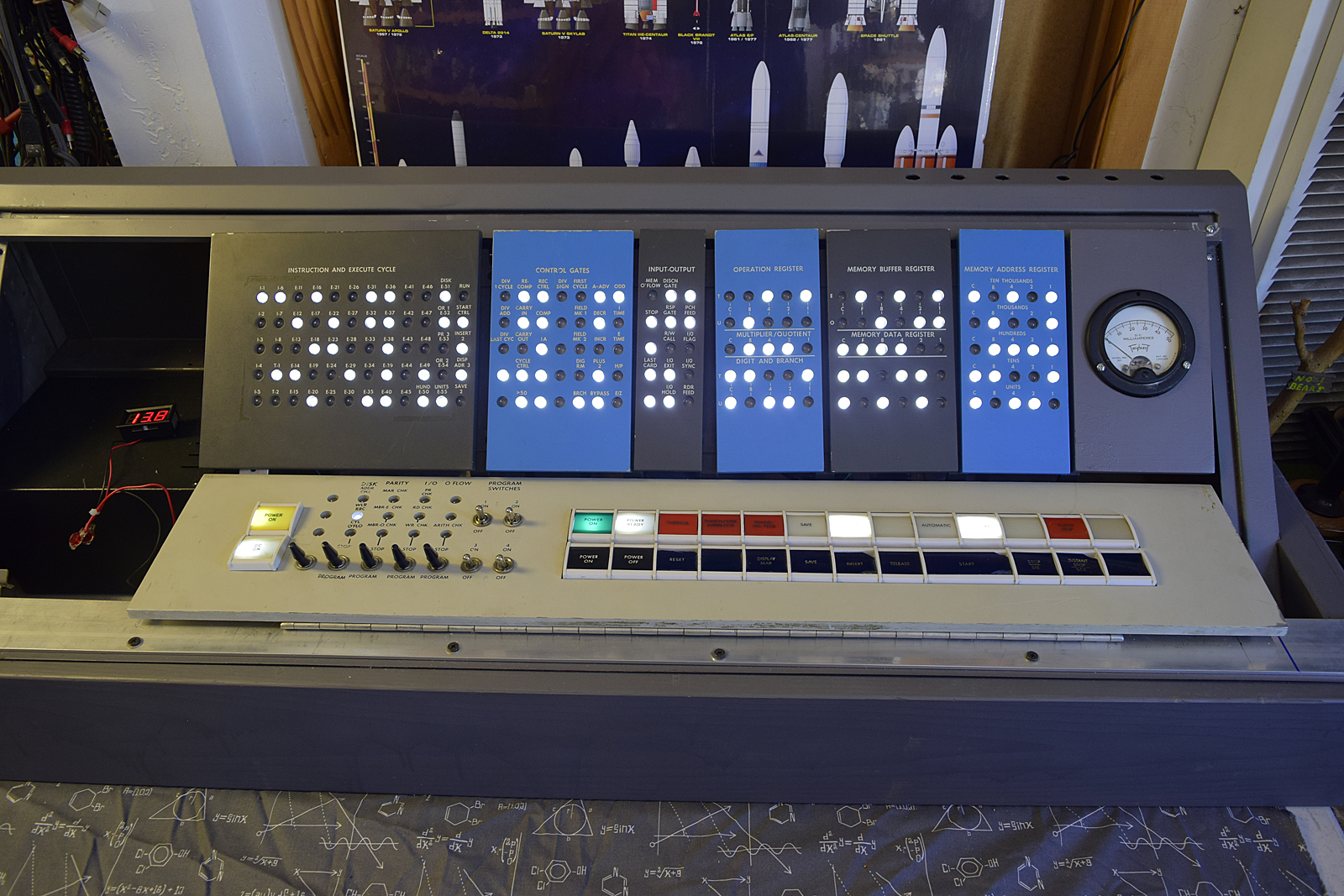

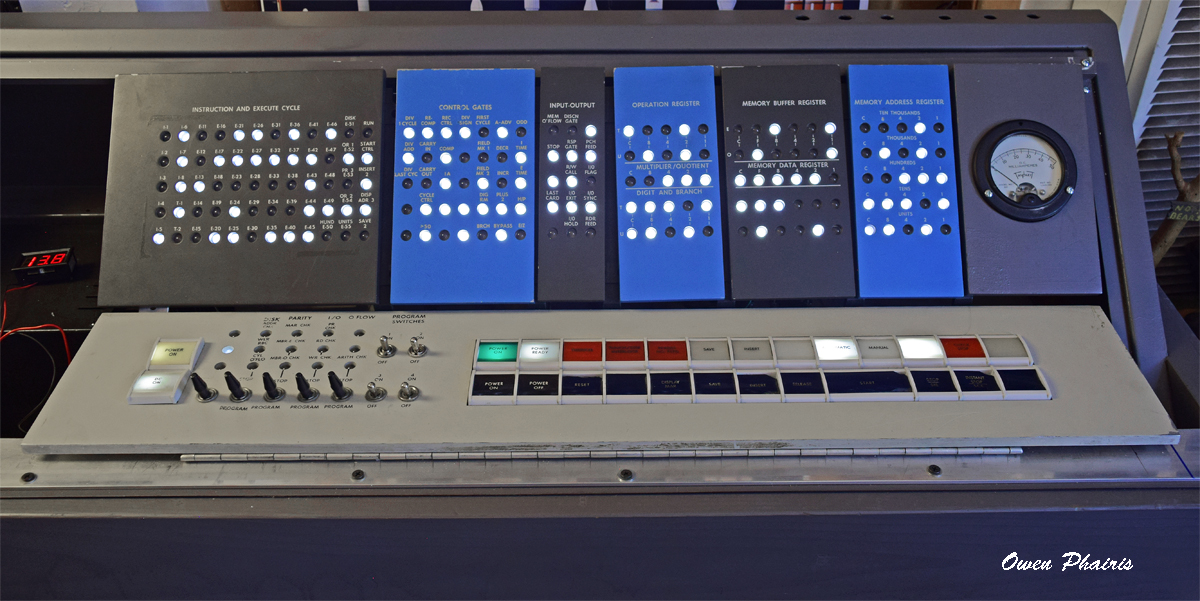

Panels wired, switches & lights replaced on control console

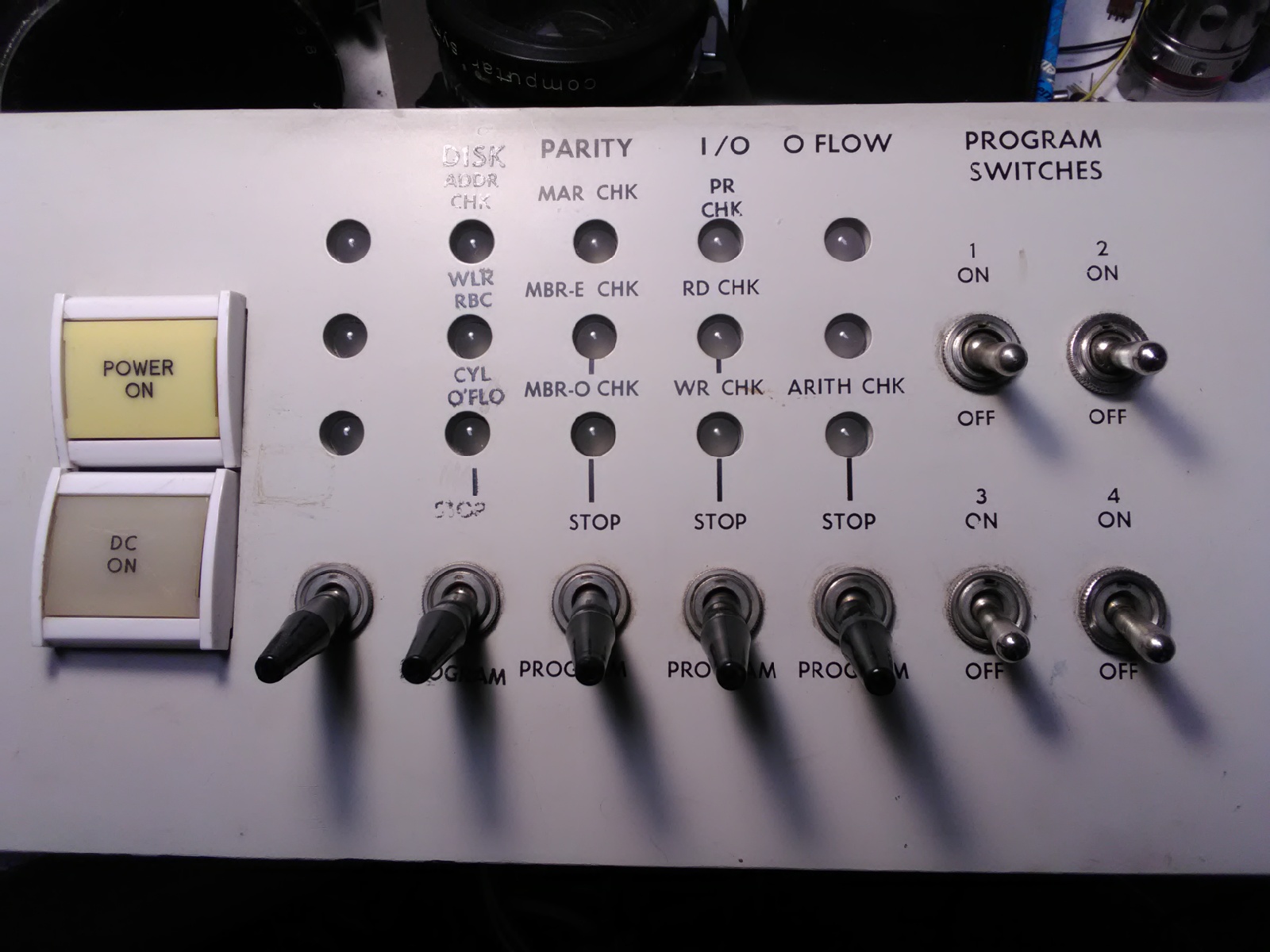

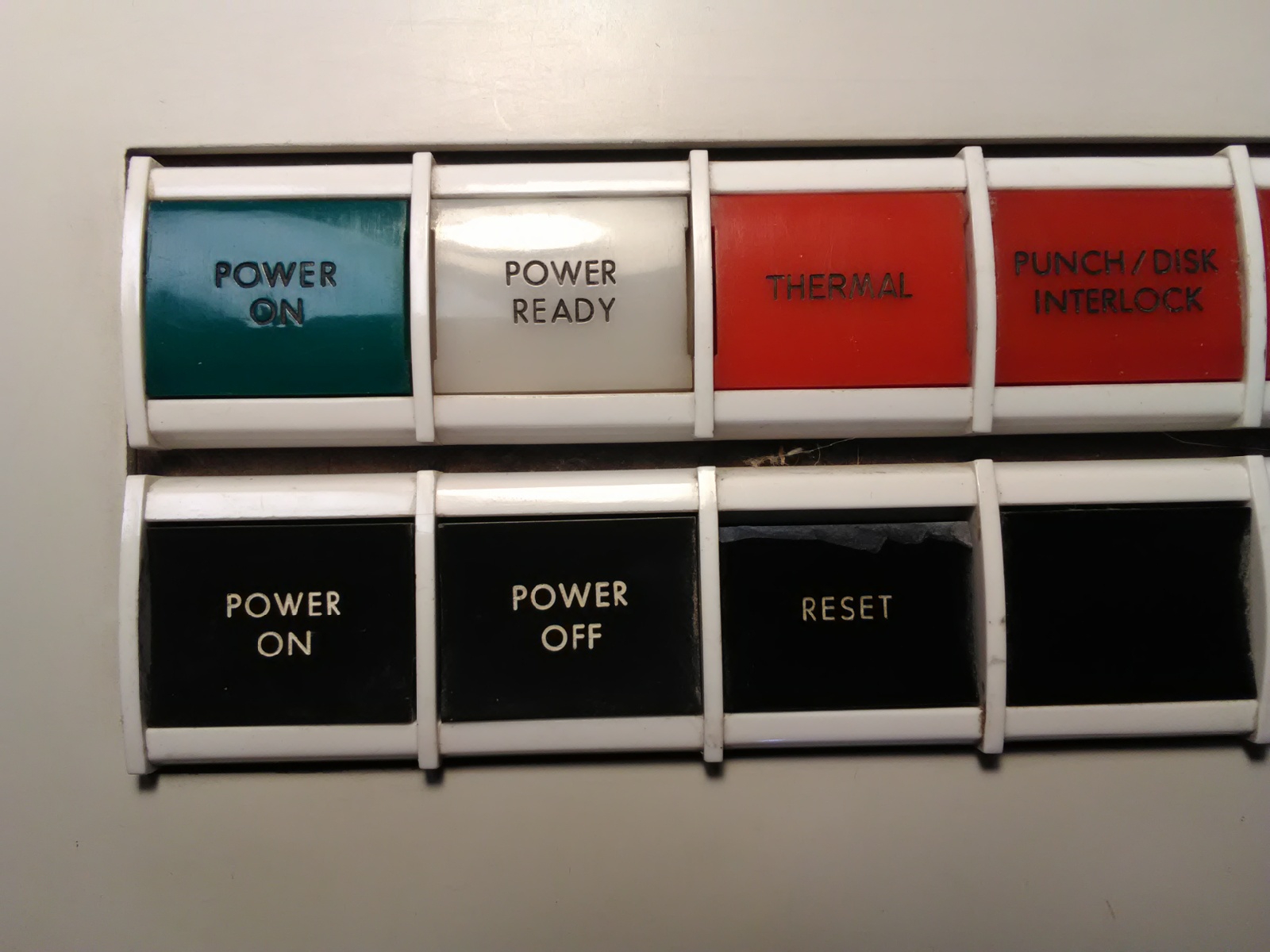

On Off switch broken, had a spare push button switch

Circuit Breaker missing so I put in some lights

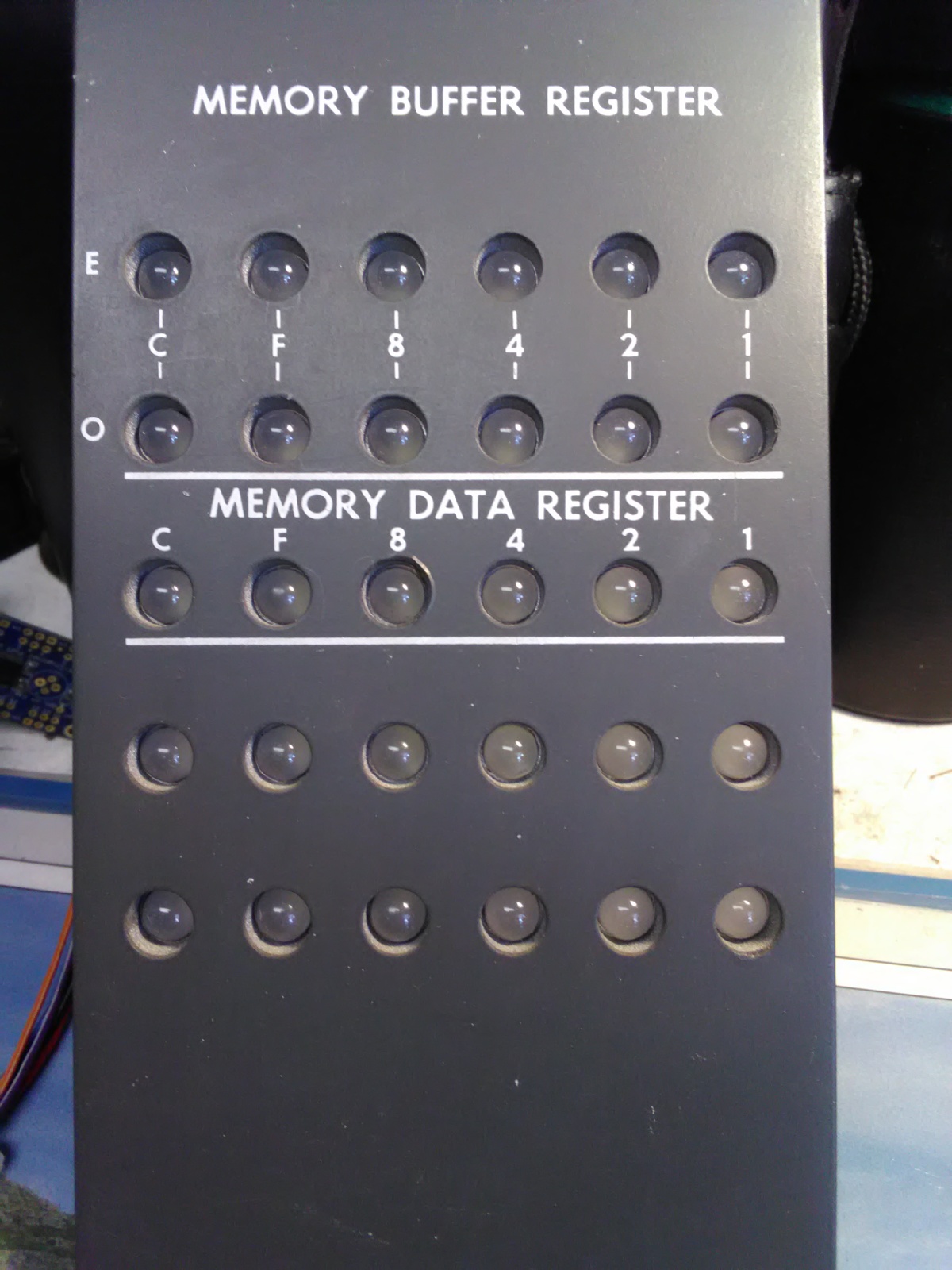

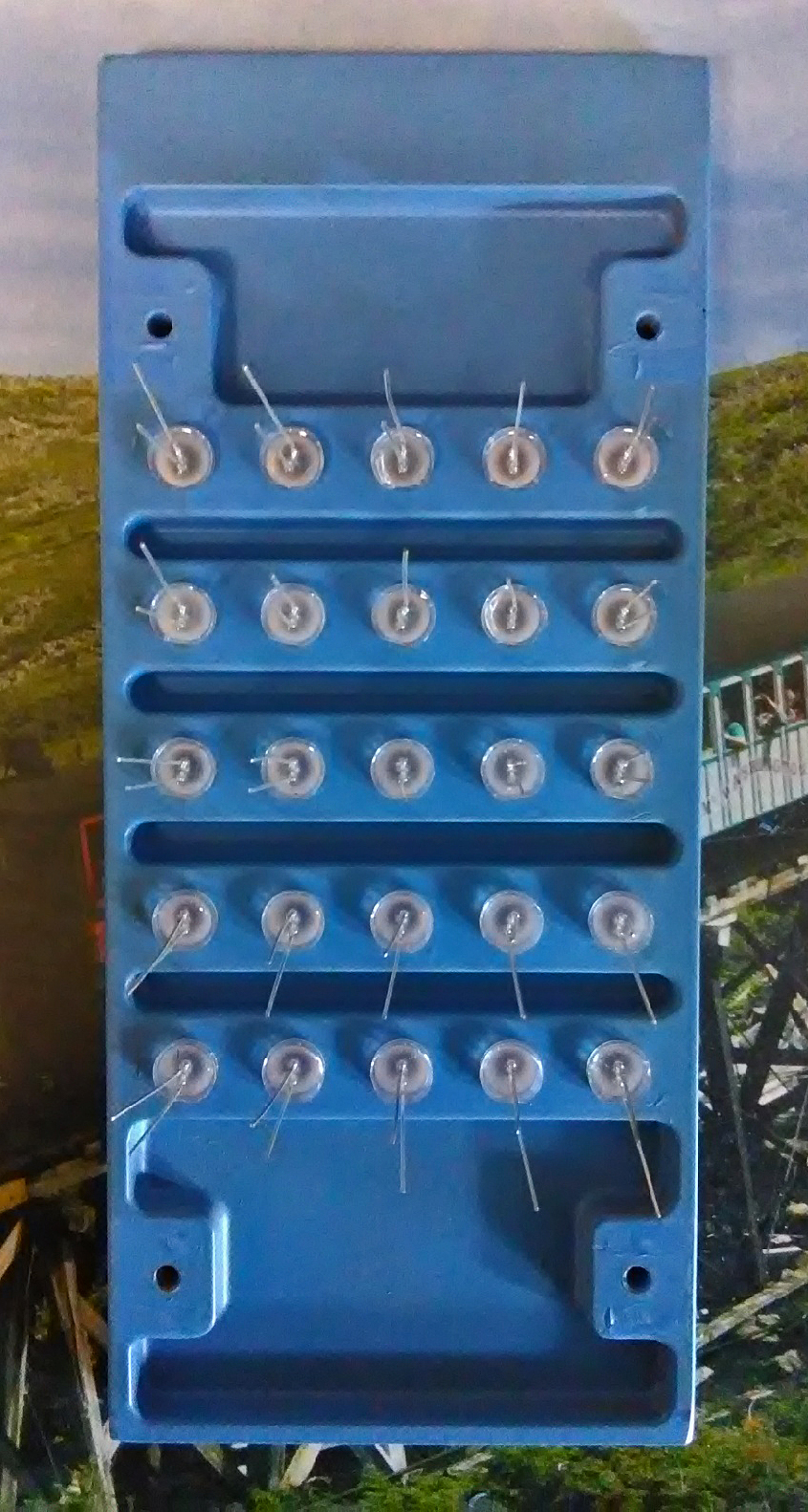

Close up of LEDs mounted to a piece of lucite

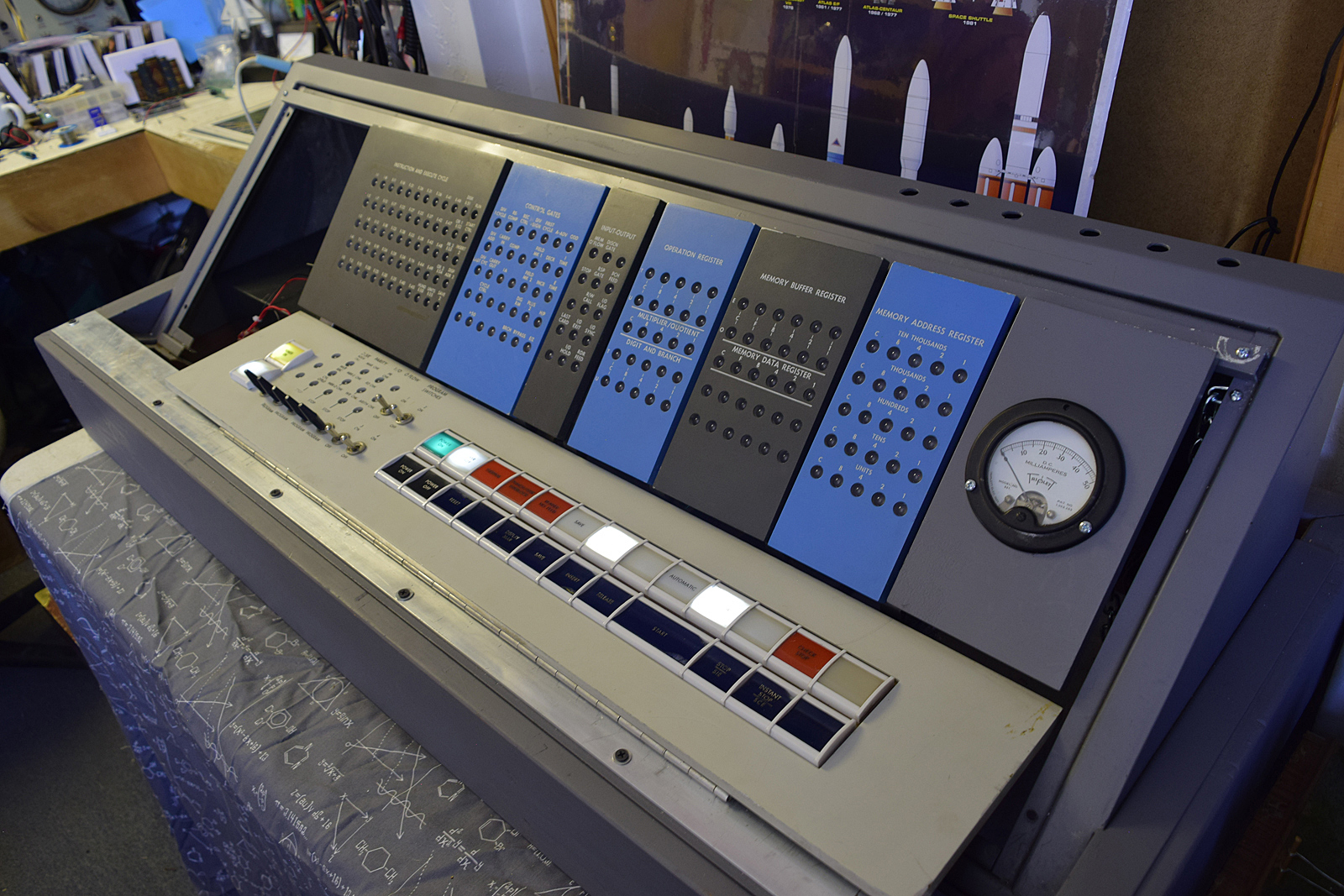

Control Panel ready for wiring

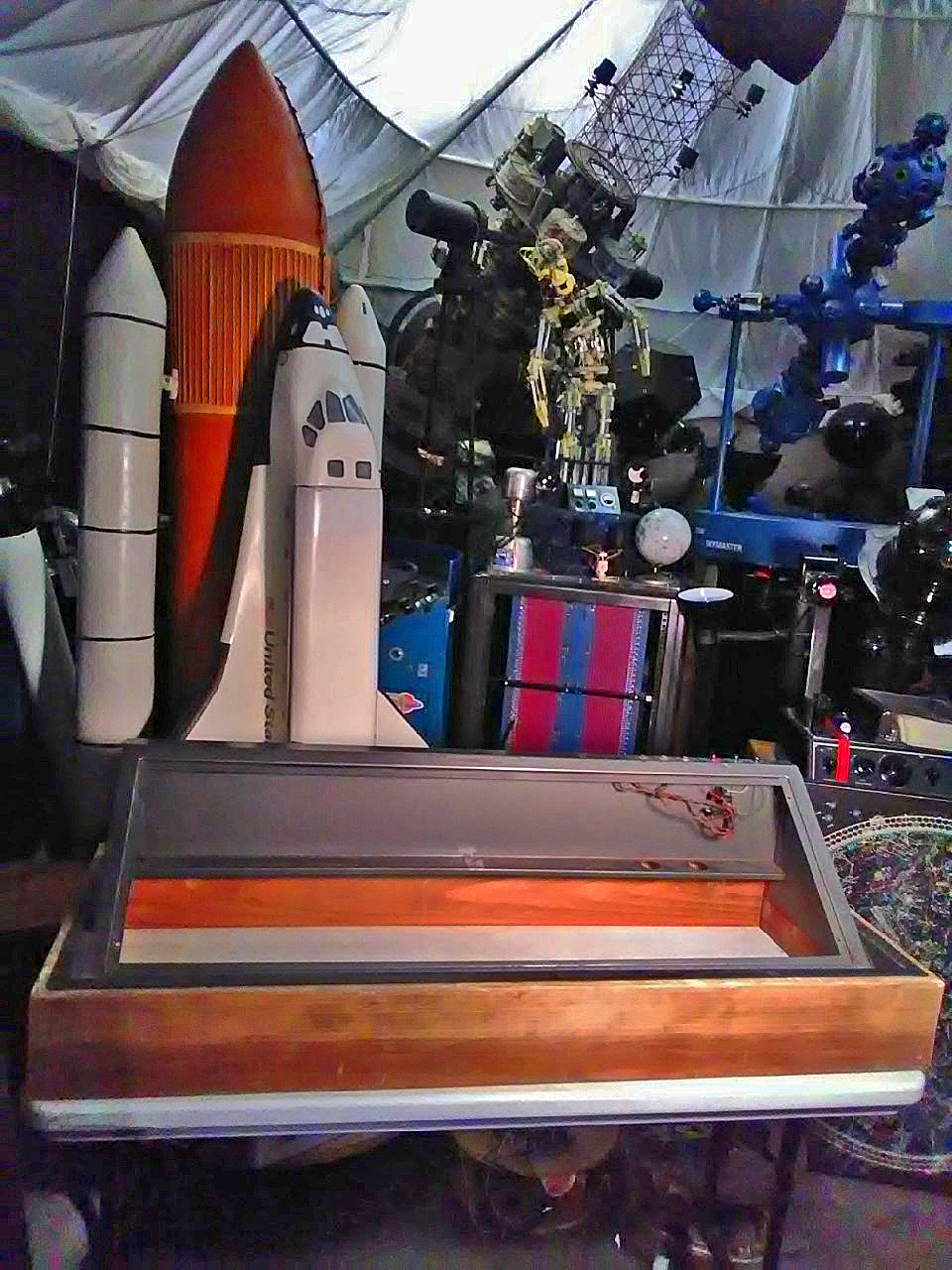

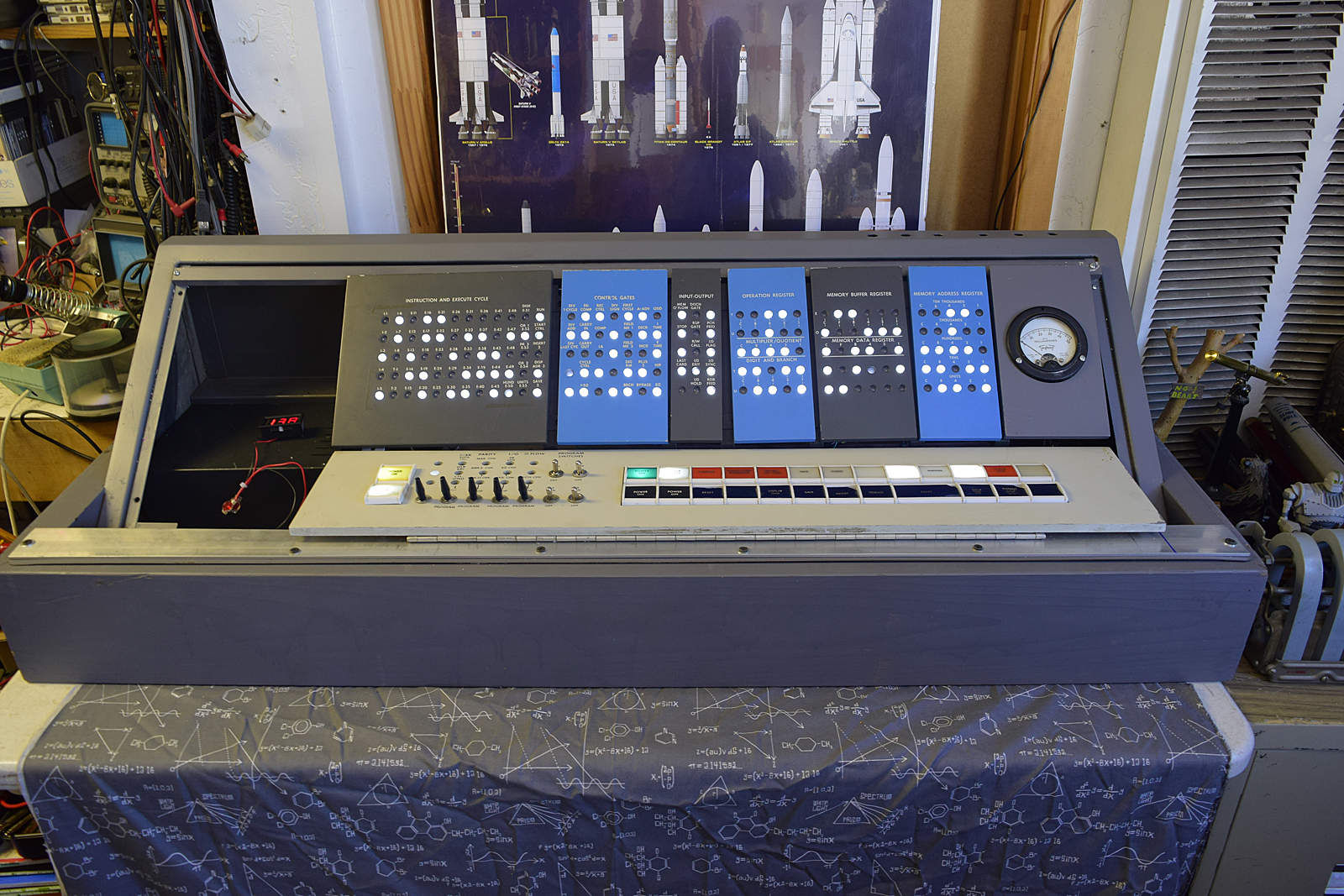

Empty Cabinet to house the IBM-1620 Computer

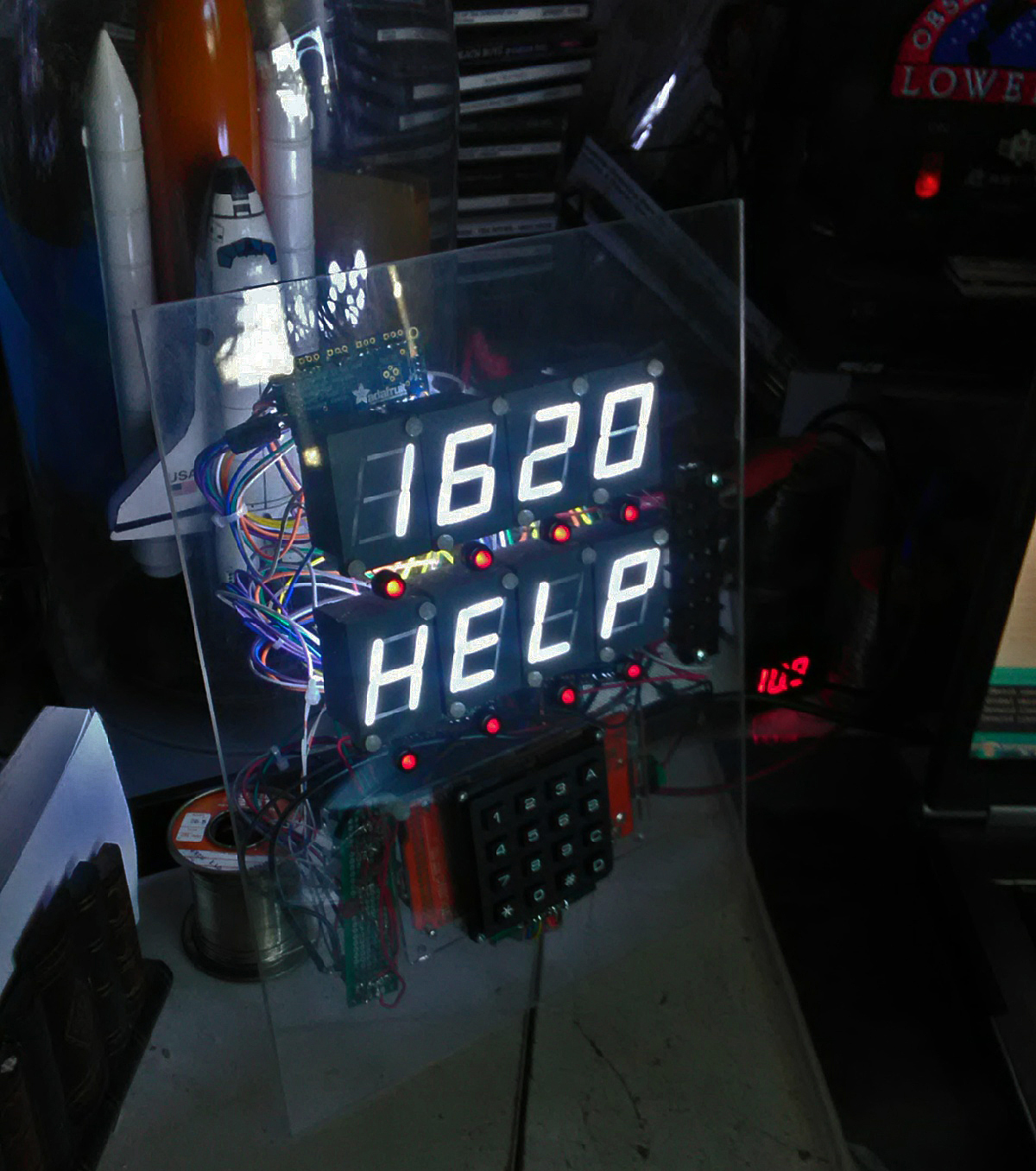

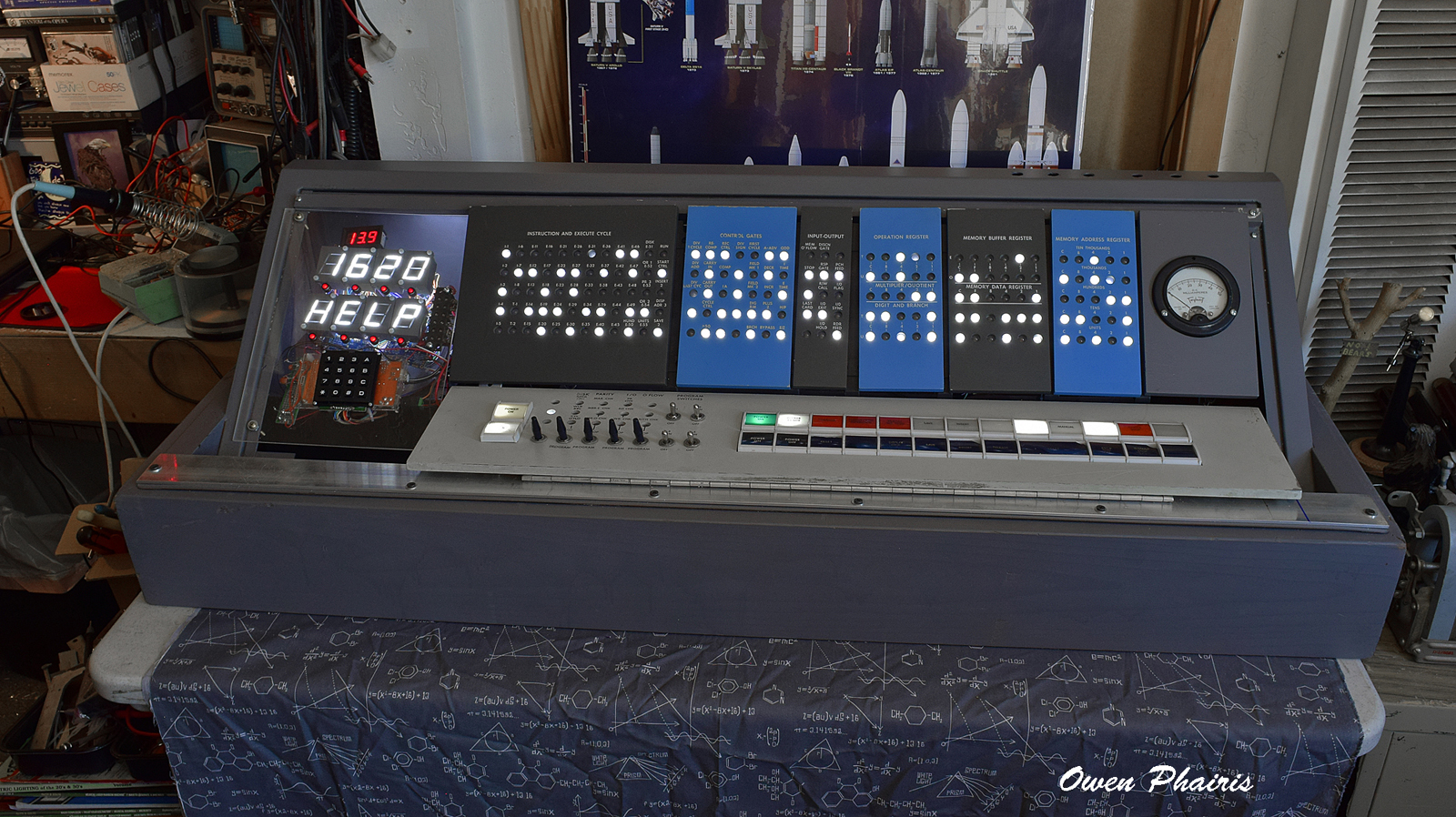

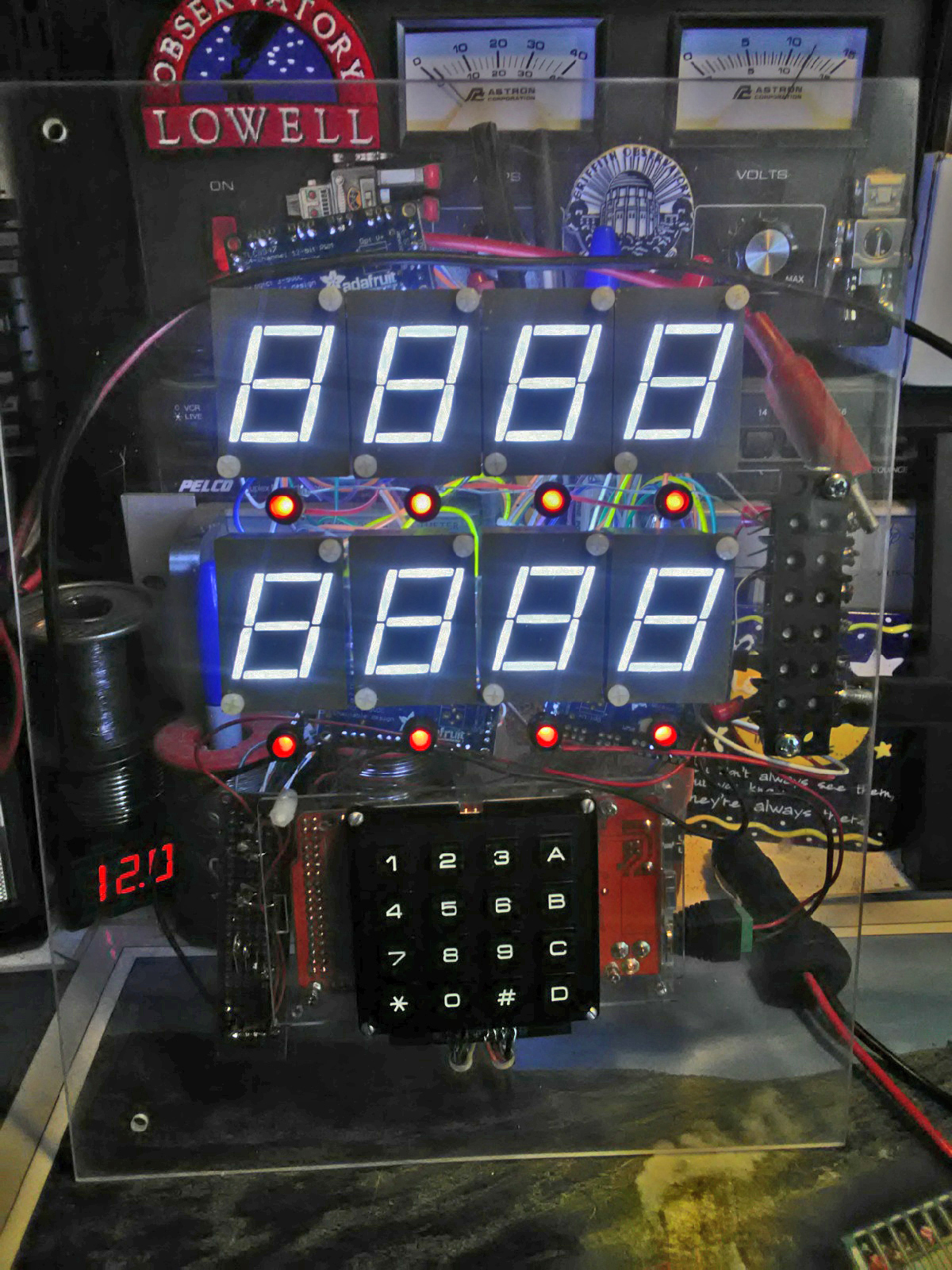

Aux Panel with Hex Keypad Input with eight 7 segment displays

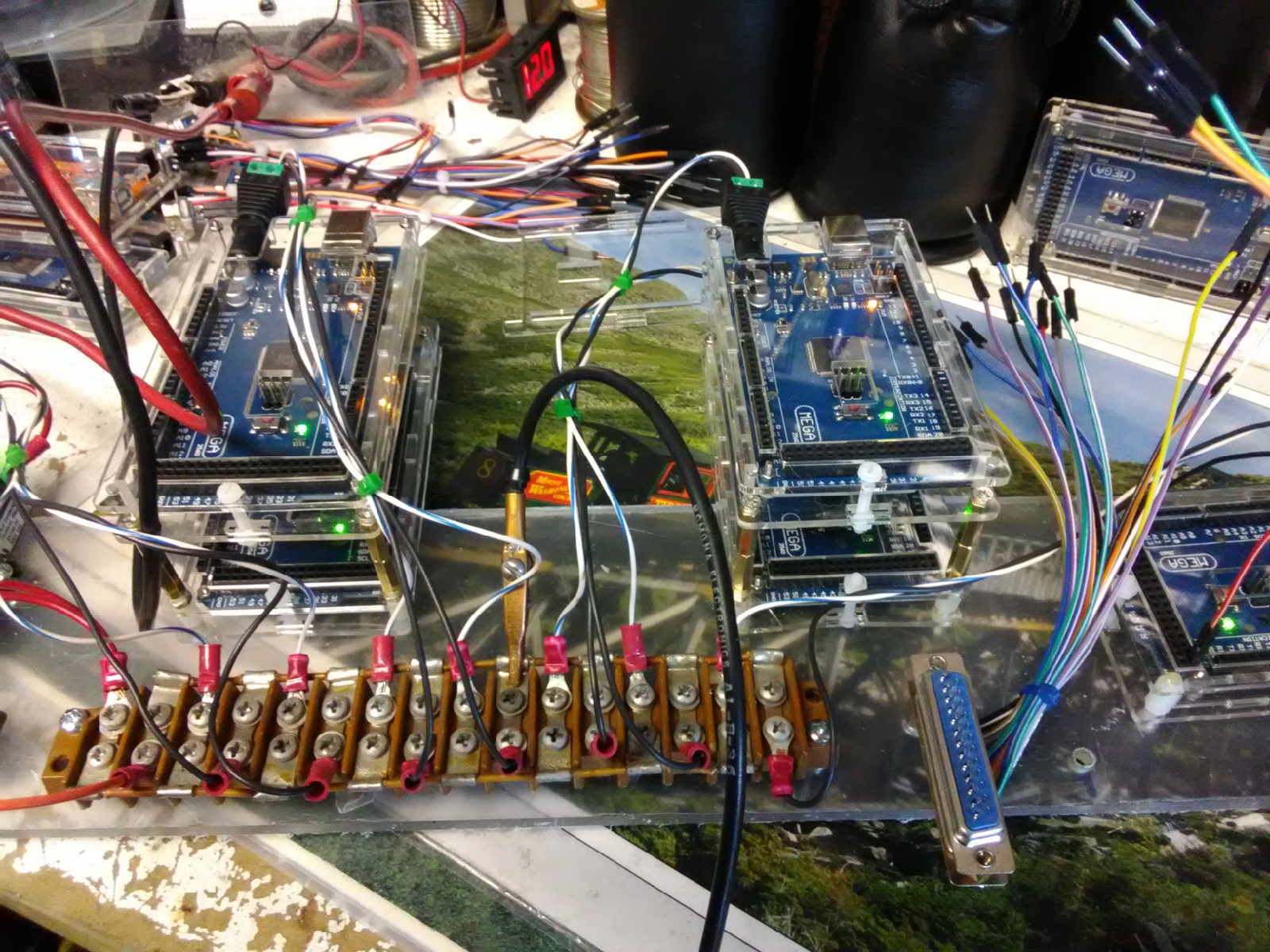

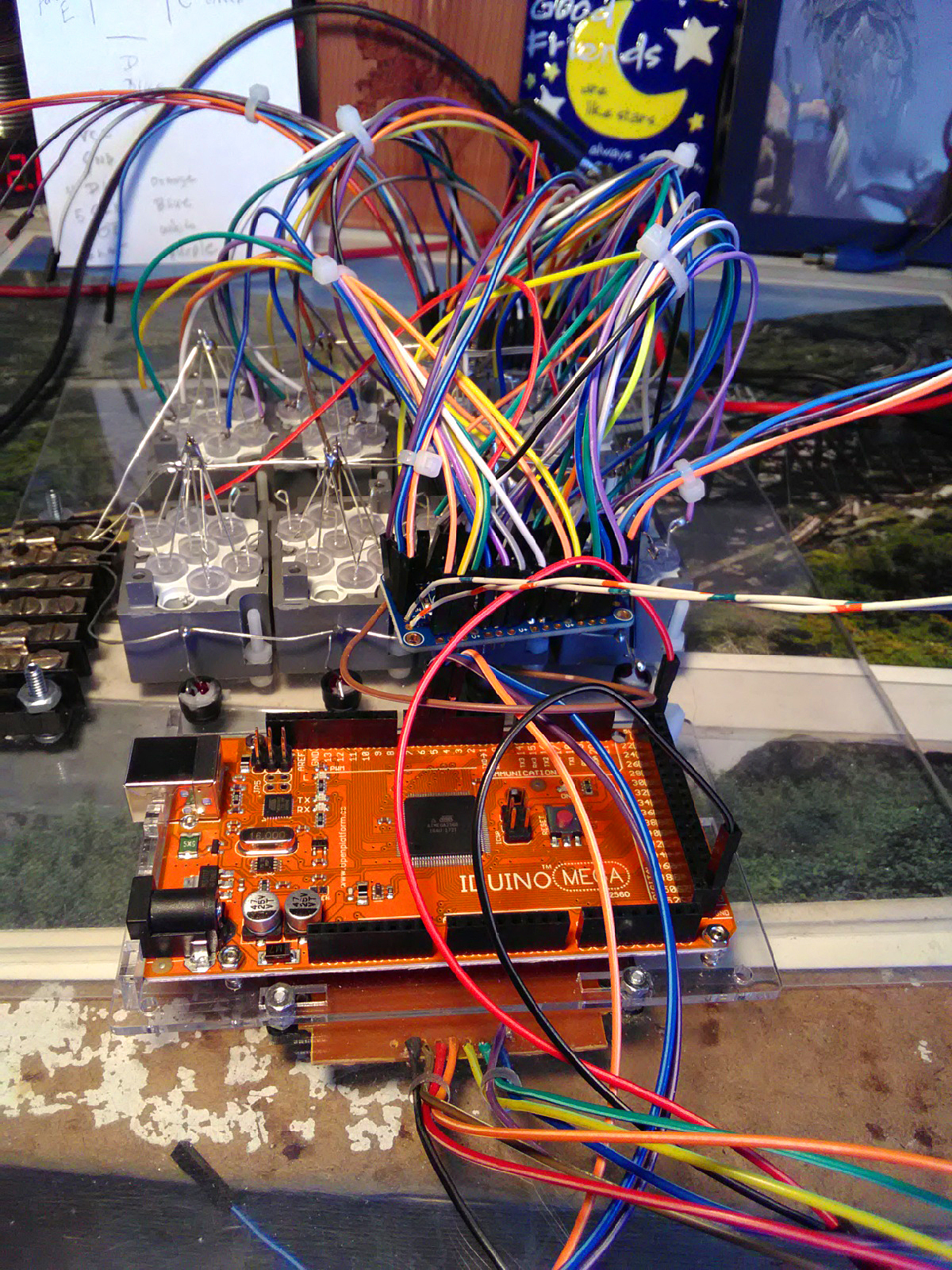

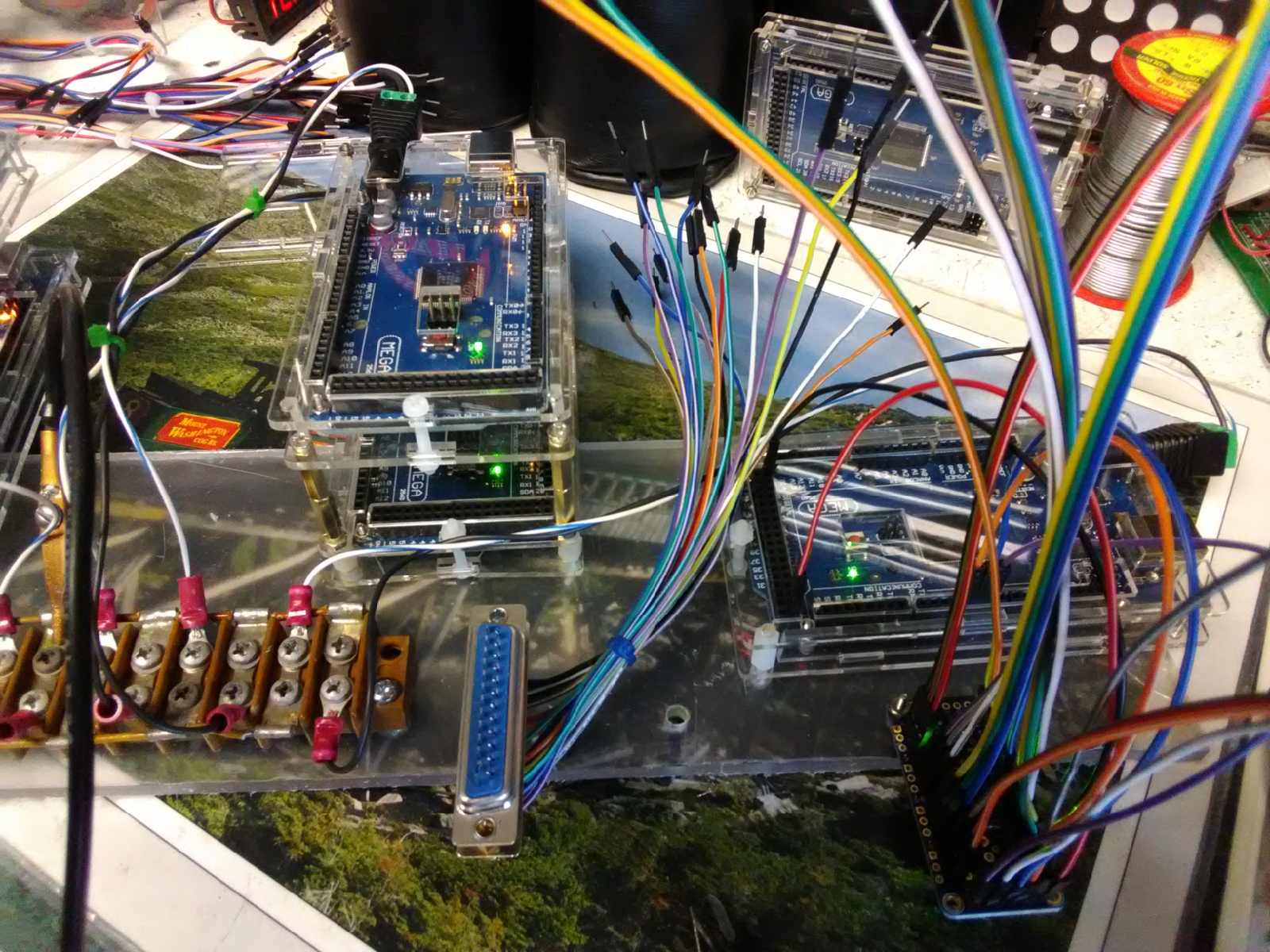

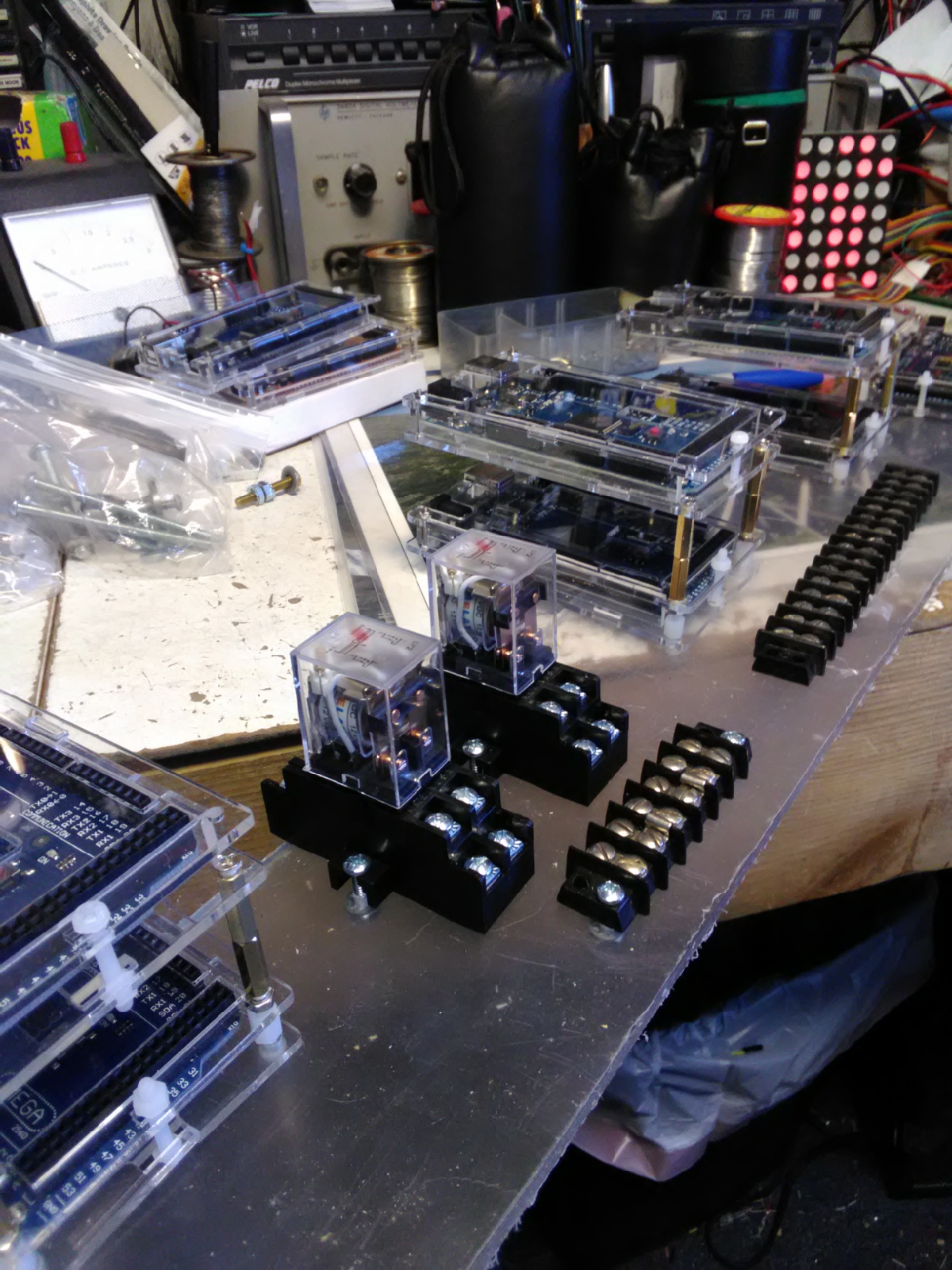

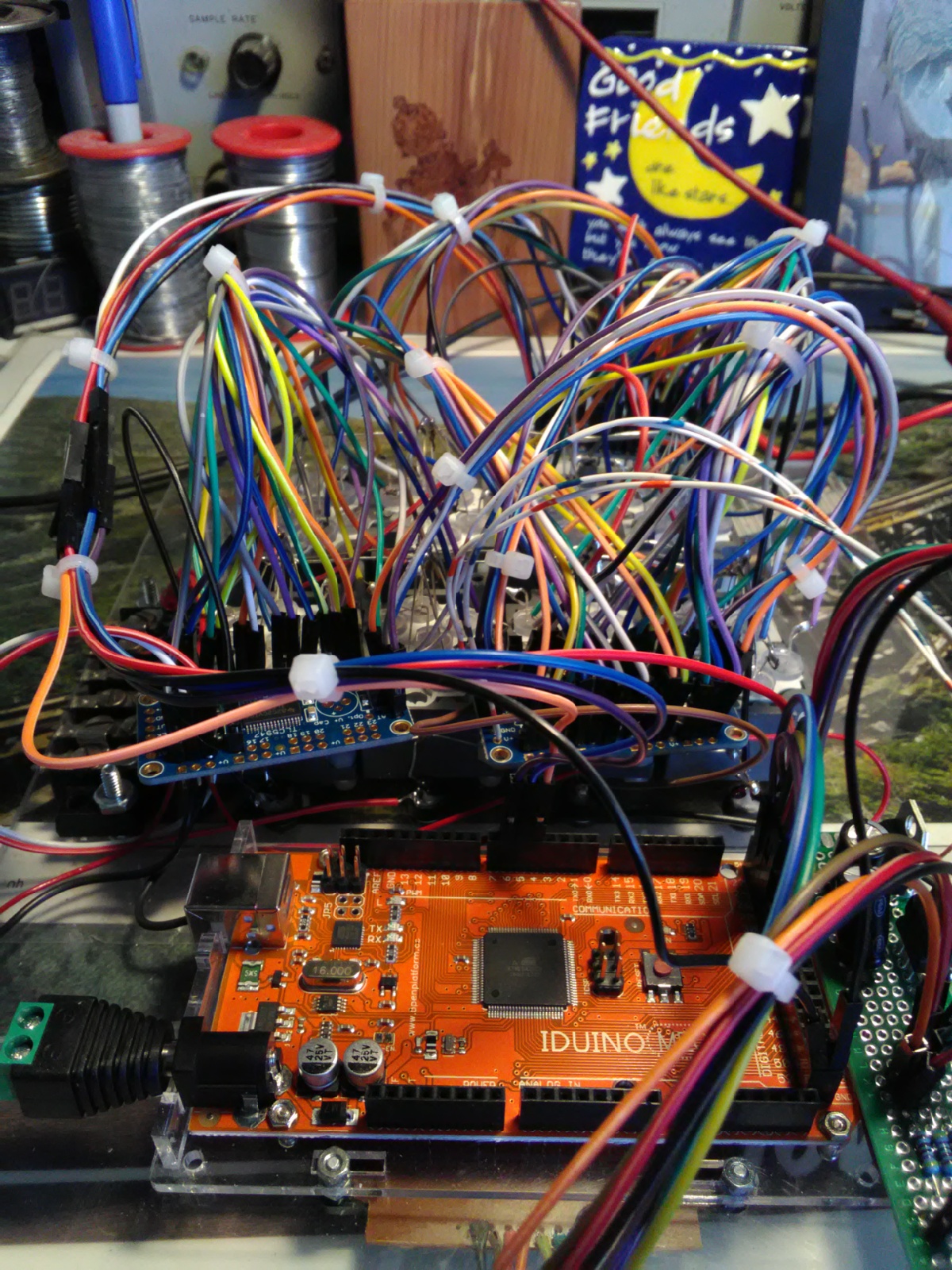

Aurdino-Mega for control and 3 TLC-5974 drivers

Eight LEDs so one knows which digit you are inputing
